Vehicle Info NeededBILSTEINPART NUMBER: 132-AK1198

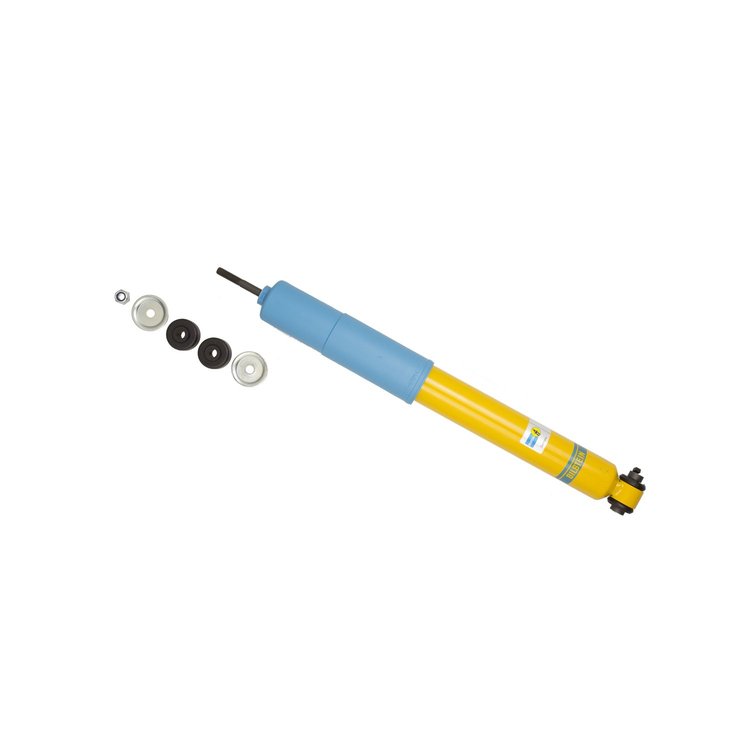

AK1198 AK Series Shock Absorber
$13290
2 left in stock
Ships on Sep 08, 2026
Lowest Price Guarantee- AK Series - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: Blue Straight
- Internal Design: Monotube
- Finish: Yellow Paint
- Upper Mount Type: Stem
- Lower Mount Type: Eye 12mm
- Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Stock Mount Smooth Body
- Extended Length (IN): 20.16
- Collapsed Length (IN): 12.64
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 321.0
- Extended Length (MM): 512.0
- Valving Identifier: 152/103
- Piston Type: Linear
- Body Material: Steel
- Rebound @0.26M/S: 905
- Compression @0.26M/S: 330
AK1198 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.3 PG
Part CategoryPerformance Parts
Boot IncludedBlue Straight
Lower Mount TypeEye 12mm
Shaft Diameter11mm
Piston Diameter46mm
Collapsed Length (In)12.64 in.
Upper Mount TypeStem
SeriesAK Series
Body MaterialSteel
Travel Length7.52 in.
Extended Length20.16 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishYellow Paint
Vendor Part NumberB5AK1198
Package Qty1
Package TypeEA
