Vehicle Info NeededBILSTEINPART NUMBER: 132-AK1199

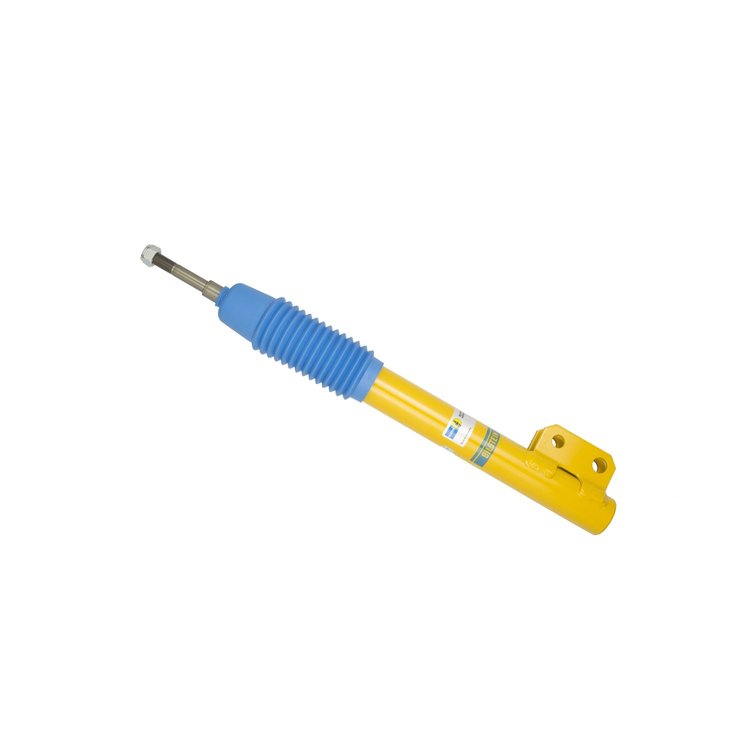

AK1199 AK Series Suspension Strut Assembly
$40257
Ships on 09/08/2026
Lowest Price Guarantee- AK Series - Suspension Strut Assembly
- 46mm Monotube Shock Absorber
- Boot Included: Blue Straight
- Internal Design: Monotube
- Finish: Yellow Paint
- Upper Mount Type: Stem
- Lower Mount Type: Bracket
- Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Stock Mount Smooth Body
- Extended Length (IN): 21.42
- Collapsed Length (IN): 15.98
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 406.0
- Extended Length (MM): 544.0
- Valving Identifier: 224/122
- Piston Type: Linear
- Body Material: Steel
- Rebound @0.26M/S: 1165
- Compression @0.26M/S: 520
AK1199 Suspension Strut Assembly Features:
Part TypeStrut
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight8.09 PG
Part CategoryPerformance Parts
Boot IncludedBlue Straight
Lower Mount TypeBracket
Shaft Diameter16mm
Piston Diameter46mm
Collapsed Length (In)15.98 in.
Upper Mount TypeStem
SeriesAK Series
Body MaterialSteel
Travel Length5.30 in.
Extended Length21.42 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishYellow Paint
Vendor Part NumberB5AK1199
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
