Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

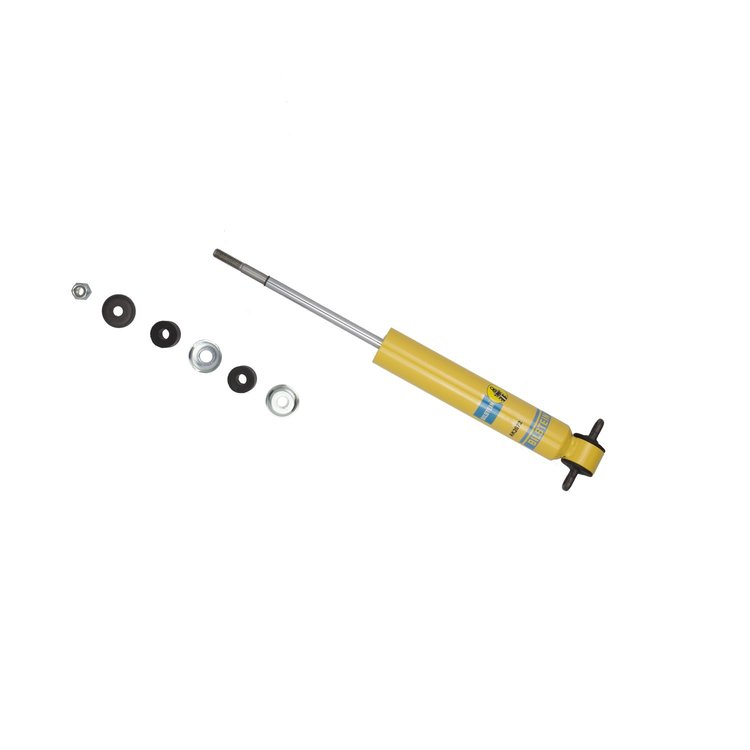

- AK Series - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Yellow Paint
- Upper Mount Type: Stem
- Lower Mount Type: Bar Pin
- Spring Seat Included: No
- Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Adjustable Damping: Non-Adjustable
- Body Design: Stock Mount Smooth Body
- Extended Length (IN): 14.01
- Collapsed Length (IN): 9.06
- Body Diameter (ID): 36mm
- Collapsed Length (MM): 230.0
- Extended Length (MM): 355.8
- Valving Identifier: 381/233
- Piston Type: Linear
- Body Material: Steel
- Rebound @0.26M/S: 1520
- Compression @0.26M/S: 935
AK2072 Shock Absorber Features:
Performance Shocks for OEM Mounting
Bilstein AK-Series Shock Absorbers feature a monotube gas-pressure design with steel spring valve discs that deliver consistent dampening performance and durability for motorsports applications. These shocks are tailored for vehicles with OE-style mounting and must meet racing sanctioning body requirements.
Part TypeShock Absorber
Product LineBilstein AK-Series Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length22.45
Weight2.49 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeBar Pin
Shaft Diameter11mm
Piston Diameter36mm
Collapsed Length (In)9.06 in.
Upper Mount TypeStem
SeriesAK Series
Body MaterialSteel
Travel Length5.09 in.
Extended Length14.01 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishYellow Paint
Vendor Part NumberB5AK2072
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
