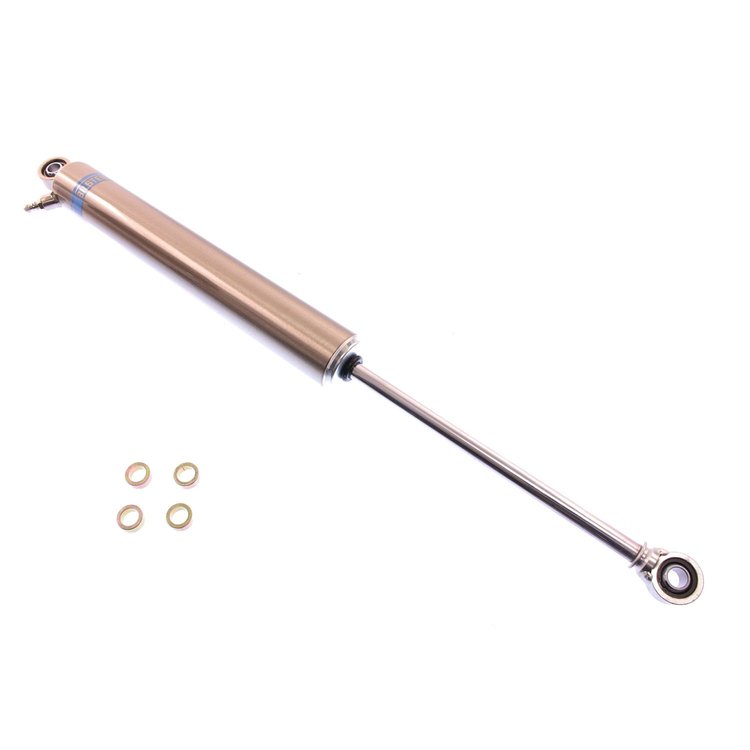

- M 7100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Electroless Nickel with Clear Powder coat
- Upper Mount Type: 1/2in Heim
- Lower Mount Type: 1/2in Heim
- Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
- Spring Seat Included: No
- Reservoir: No
- Body Design: 46mm ID Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 2080
- Extended Length (IN): 25.77
- Collapsed Length (IN): 16.10
- Collapsed Length (MM): 408.9
- Extended Length (MM): 654.5
- Compression @0.52M/S: 720
AK7110STB Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.0
Package Width7.0
Package Length37.0
Weight25.05 PG
Part CategoryPerformance Parts
SeriesM 7100
Boot IncludedNo
Lower Mount Type1/2in Heim
Travel Length9.67 in.
Shaft Diameter14mm
Extended Length25.77 in.
Collapsed Length (In)16.10 in.
Internal DesignMonotube
FinishElectroless Nickel with Clear Powder coat
Upper Mount Type1/2in Heim
Vendor Part NumberB5AK7110STB
Package Qty1
Package TypeEA
