Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

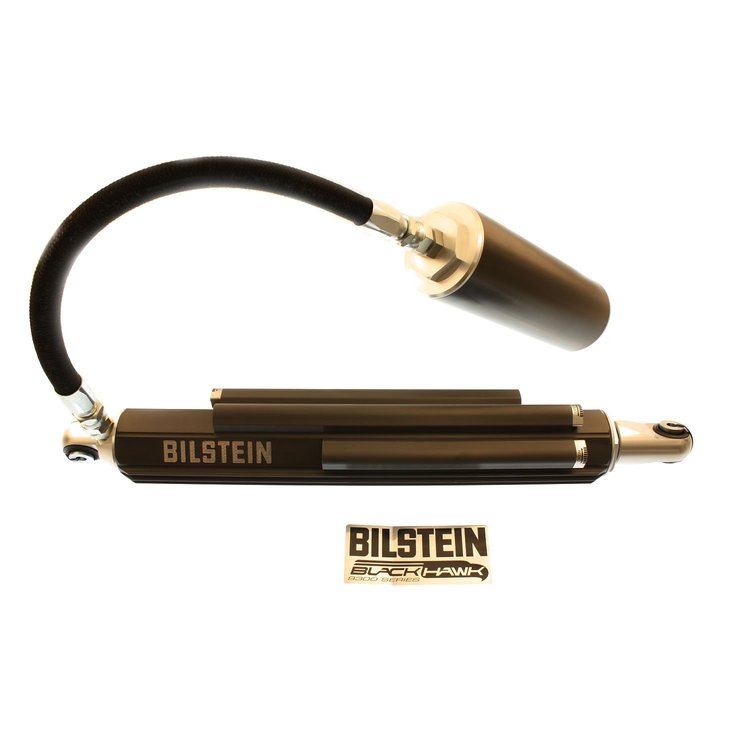

- M 9300 Black Hawk - Shock Absorber
- 76mm Monotube Shock Absorber
- Internal Design: Monotube
- Finish: Clear Hard Anodized
- Upper Mount Type: 3/4in Heim
- Lower Mount Type: 3/4in Heim
- Spring Seat Included: No
- Bilstein M 9300 Black Hawk shock absorbers are a position sensitive, adjustable bypass shock absorbers designed for off-road motorsports applications. Based on an aluminum extrusion, the hard anodized shock body will dissipate heat 30% faster than a steel body shock absorber. M 9300 Black Hawk shock absorbers use 4 IFMV’s (Incremental Bypass Flow Metering Valve), with 10 adjustable positions to perfectly adjust the rebound and compression damping. M 9300 Black Hawk shock absorbers utilize a 3 inch ID piston bore and an ACV (Anti-Cavitiation Valve), which is housed in a 4.5 inch OD remote reservoir. The ACV allows the shock absorber to operate with much lower gas pressure to eliminate oil cavitation. With the ACV, M 9300 Black Hawk shock absorbers can fully function at 70-90 PSI which improves the overall durability and comfort. These shock absorbers are completely owner rebuildable and revalvable with service parts readily available. M 9300 Black Hawk shock absorbers will provide the most advanced technology found in an off-road racing shock absorber today.
- Reservoir: Yes
- Body Design: 4-Tube Bypass Screw Top
- Rebound @0.52M/S: Custom
- Extended Length (IN): 34.75
- Collapsed Length (IN): 22.75
- Body Diameter (ID): 76mm
- Collapsed Length (MM): 577.9
- Extended Length (MM): 882.7
- Compression @0.52M/S: Custom
- Collapsed Length (IN) Rounded: 23
- Extended Length (IN) Rounded: 35
- Optional Reservoir Clamp: N/A
- Mount Type: Eye-to-Eye
AK9312BY Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height9.75
Package Width16.75
Package Length38.25
Weight30.05 PG
Part CategoryPerformance Parts
SeriesM 9300 Black Hawk
Lower Mount Type3/4in Heim
Mount TypeEye-to-Eye
Travel Length12.00 in.
Piston Diameter76mm
Extended Length34.75 in.
Collapsed Length (In)22.75 in.
Internal DesignMonotube
FinishClear Hard Anodized
Upper Mount Type3/4in Heim
Vendor Part NumberB5AK9312BY
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
