Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

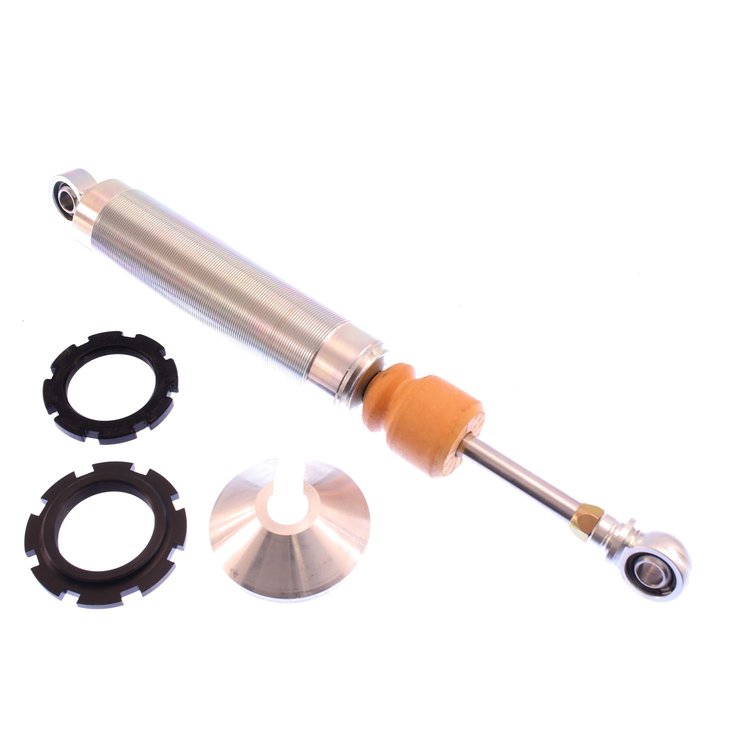

- M 7100 Classic (Coilover) - Shock Absorber
- 46mm Monotube Shock Absorber
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: 1/2in Heim
- Lower Mount Type: 1/2in Heim
- Spring Seat Included: Yes
- Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.
- Reservoir: No
- Body Design: Threaded Body (Coilover)
- Rebound @0.52M/S: Custom
- Extended Length (IN): 22.25
- Collapsed Length (IN): 14.00
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 355.6
- Extended Length (MM): 565.2
- Compression @0.52M/S: Custom
- Collapsed Length (IN) Rounded: 14
- Extended Length (IN) Rounded: 22
- Optional Reservoir Clamp: N/A
- Mount Type: Eye-to-Eye
B46-0206W Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.5
Package Width2.75
Package Length26.0
Weight5.58 PG
Part CategoryPerformance Parts
SeriesM 7100 Classic (Coilover)
Lower Mount Type1/2in Heim
Mount TypeEye-to-Eye
Travel Length8.25 in.
Piston Diameter46mm
Extended Length22.25 in.
Collapsed Length (In)14.00 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount Type1/2in Heim
Vendor Part NumberB5B46-0206W
Package Qty1
Package TypeEA
