Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

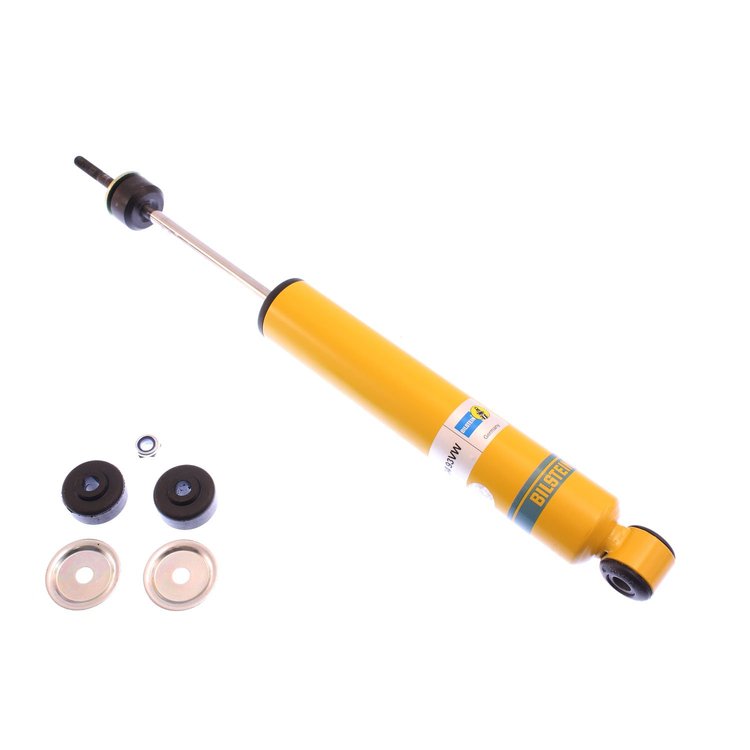

- M 7100 Classic - Shock Absorber
- 46mm Monotube Shock Absorber
- Internal Design: Monotube
- Finish: Yellow Paint
- Upper Mount Type: Stem
- Lower Mount Type: Eye 12.7mm
- Spring Seat Included: No
- Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.
- Reservoir: No
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 2650
- Extended Length (IN): 18.60
- Collapsed Length (IN): 11.70
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 297.2
- Extended Length (MM): 472.4
- Compression @0.52M/S: 700
- Collapsed Length (IN) Rounded: 12
- Extended Length (IN) Rounded: 19
- Optional Reservoir Clamp: N/A
- Mount Type: Stem-to-Eye
B46-0493VW Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.03 PG
Part CategoryPerformance Parts
SeriesM 7100 Classic
Lower Mount TypeEye 12.7mm
Mount TypeStem-to-Eye
Travel Length6.90 in.
Piston Diameter46mm
Extended Length18.60 in.
Collapsed Length (In)11.70 in.
Internal DesignMonotube
FinishYellow Paint
Upper Mount TypeStem
Vendor Part NumberB5B46-0493VW
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
