Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

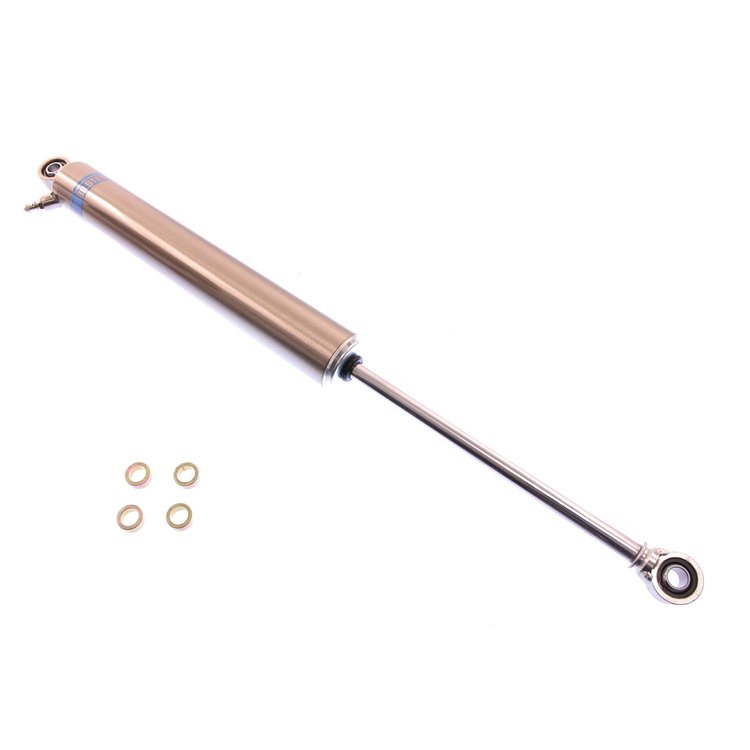

- M 7100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Internal Design: Monotube
- Finish: Nickel Plated with Clear Powder Coat
- Upper Mount Type: 1/2in Heim
- Lower Mount Type: 1/2in Heim
- Reservoir: No
- Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
- Spring Seat Included: No
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 1700
- Extended Length (IN): 16.04
- Collapsed Length (IN): 10.81
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 274.6
- Extended Length (MM): 407.4
- Compression @0.52M/S: 600
- Collapsed Length (IN) Rounded: 11
- Extended Length (IN) Rounded: 16
- Optional Reservoir Clamp: N/A
- Mount Type: Eye-to-Eye
B46-0930S02 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.5
Package Width2.75
Package Length26.0
Weight3.73 PG
Part CategoryPerformance Parts
SeriesM 7100
Lower Mount Type1/2in Heim
Mount TypeEye-to-Eye
Travel Length5.23 in.
Piston Diameter46mm
Extended Length16.04 in.
Collapsed Length (In)10.81 in.
Internal DesignMonotube
FinishNickel Plated with Clear Powder Coat
Upper Mount Type1/2in Heim
Vendor Part NumberB5B46-0930S02
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
