Vehicle Info NeededBILSTEINPART NUMBER: 132-B46-1085R

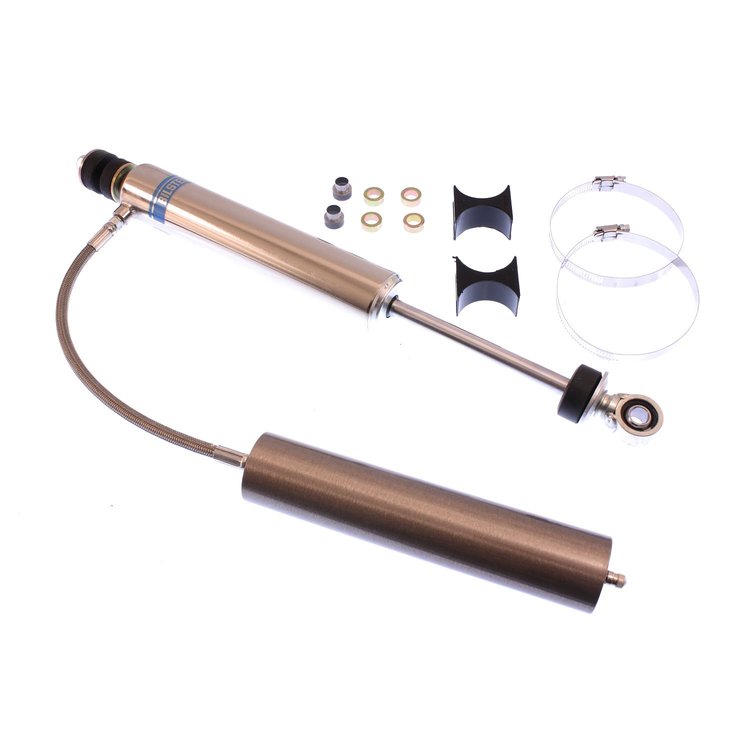

B46-1085R M 7100 Shock Absorber
$38500
2 left in stock
Ships on Sep 08, 2026
Lowest Price Guarantee- M 7100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Internal Design: Monotube
- Finish: Nickel Plated with Clear Powder Coat
- Upper Mount Type: Stem
- Lower Mount Type: 1/2in Heim
- Spring Seat Included: No
- Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
- Reservoir: Yes
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 2200
- Extended Length (IN): 18.46
- Collapsed Length (IN): 11.83
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 300.5
- Extended Length (MM): 468.9
- Compression @0.52M/S: 1150
- Collapsed Length (IN) Rounded: 12
- Extended Length (IN) Rounded: 18
- Optional Reservoir Clamp: N/A
- Mount Type: Stem-to-Eye
B46-1085R Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.0
Package Width7.0
Package Length37.0
Weight7.87 PG
Part CategoryPerformance Parts
SeriesM 7100
Lower Mount Type1/2in Heim
Mount TypeStem-to-Eye
Travel Length6.63 in.
Piston Diameter46mm
Extended Length18.46 in.
Collapsed Length (In)11.83 in.
Internal DesignMonotube
FinishNickel Plated with Clear Powder Coat
Upper Mount TypeStem
Vendor Part NumberB5B46-1085R
Package Qty1
Package TypeEA
