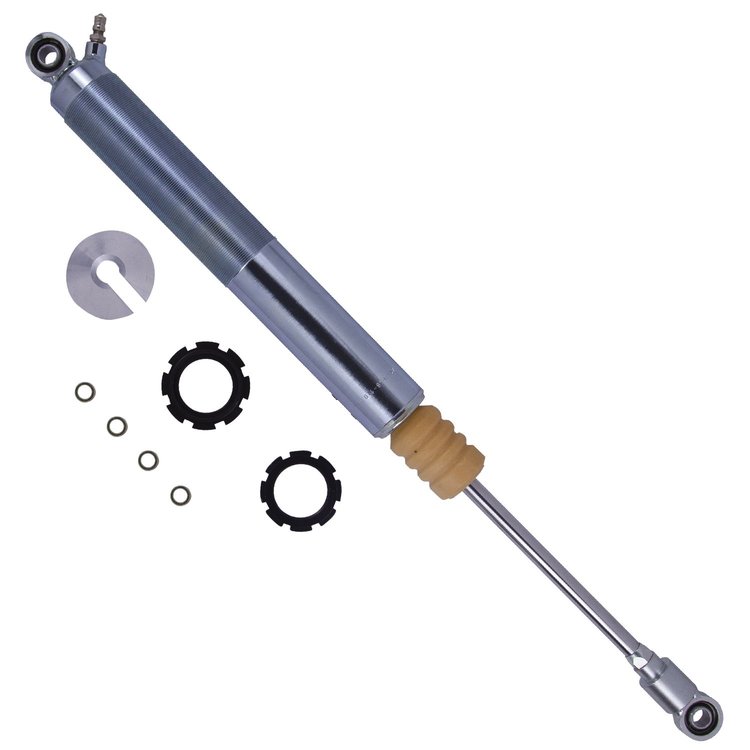

B46-1103SA M 7100 (Coilover) Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.
Spring Seat Included: Yes
Reservoir: No
Body Design: Threaded Body (Coilover)
Rebound @0.52M/S: 1800
Extended Length (IN): 26.65
Collapsed Length (IN): 17.44
Body Diameter (ID): 46mm
Collapsed Length (MM): 443.0
Extended Length (MM): 676.9
Compression @0.52M/S: 750
Collapsed Length (IN) Rounded: 17
Extended Length (IN) Rounded: 27
Optional Reservoir Clamp: N/A
Mount Type: Eye-to-Eye

Part TypeCoilover Shock

BrandBILSTEIN

Package Height2.0

Package Width7.0

Package Length37.0

Weight6.31 PG

Part CategoryPerformance Parts

SeriesM 7100 (Coilover)

Lower Mount Type1/2in Heim

Mount TypeEye-to-Eye

Travel Length9.21 in.

Piston Diameter46mm

Extended Length26.65 in.

Collapsed Length (In)17.44 in.

Internal DesignMonotube

FinishNickel Plated with Clear Powder Coat

Upper Mount Type1/2in Heim

Vendor Part NumberB5B46-1103SA

Package Qty1

Package TypeEA
