Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

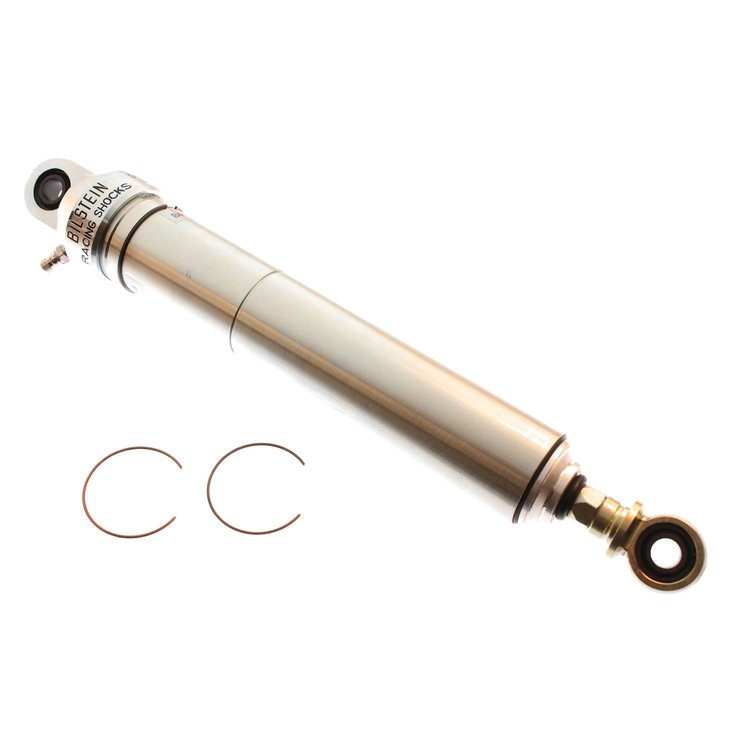

- SNS Series - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Nickel Plated
- Upper Mount Type: Eye 12.7mm
- Lower Mount Type: Eye 12.7mm
- Bilstein SNS Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are rebuildable for easy repair and valve setting changes, and can be converted to a coilover (kit sold separately). SNS Series shock absorbers are available in multiple lengths and are ideal for racers whose sanctioning bodies require an all steel construction with rebuild capability.
- Spring Seat Included: No
- Extended Length (IN): 22.07
- Collapsed Length (IN): 14.47
- Collapsed Length (MM): 367.5
- Extended Length (MM): 560.5
- Rebound: Custom Digressive
- Compression: Custom Digressive
B46-DTA8S Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.5
Package Width2.75
Package Length26.0
Weight3.8 PG
Part CategoryPerformance Parts
SeriesSNS Series
Boot IncludedNo
Lower Mount TypeEye 12.7mm
Extended Length22.07 in.
Collapsed Length (In)14.47 in.
Internal DesignMonotube
FinishNickel Plated
Upper Mount TypeEye 12.7mm
Vendor Part NumberB5B46-DTA8S
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
