Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

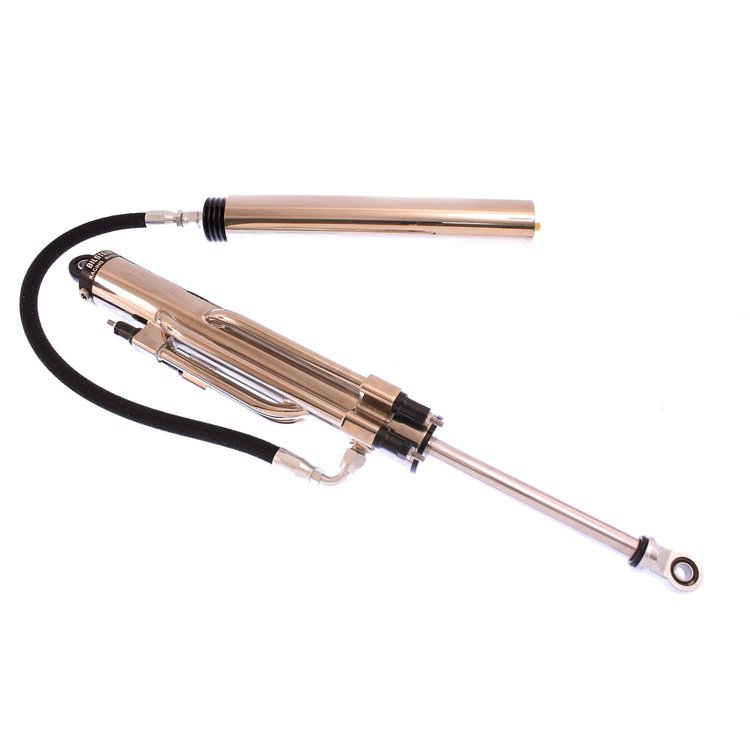

- M 9100 (Bypass) - Shock Absorber
- 60mm Monotube Shock Absorber
- Internal Design: Monotube
- Finish: Nickel Plated
- Upper Mount Type: 1/2in Heim
- Lower Mount Type: 1/2in Heim
- Spring Seat Included: No
- Bilstein M 9100 (Bypass) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.
- Reservoir: Yes
- Body Design: 4-Tube Bypass Screw Top
- Rebound @0.52M/S: Custom
- Extended Length (IN): 33.85
- Collapsed Length (IN): 21.72
- Body Diameter (ID): 60mm
- Collapsed Length (MM): 551.7
- Extended Length (MM): 859.8
- Compression @0.52M/S: Custom
- Collapsed Length (IN) Rounded: 22
- Extended Length (IN) Rounded: 34
- Optional Reservoir Clamp: N/A
- Mount Type: Eye-to-Eye
B60-9113BYST Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height9.75
Package Width16.75
Package Length38.25
Weight12.0 PG
Part CategoryPerformance Parts
SeriesM 9100 (Bypass)
Lower Mount Type1/2in Heim
Mount TypeEye-to-Eye
Travel Length12.13 in.
Piston Diameter60mm
Extended Length33.85 in.
Collapsed Length (In)21.72 in.
Internal DesignMonotube
FinishNickel Plated
Upper Mount Type1/2in Heim
Vendor Part NumberB5B60-9113BYST
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
