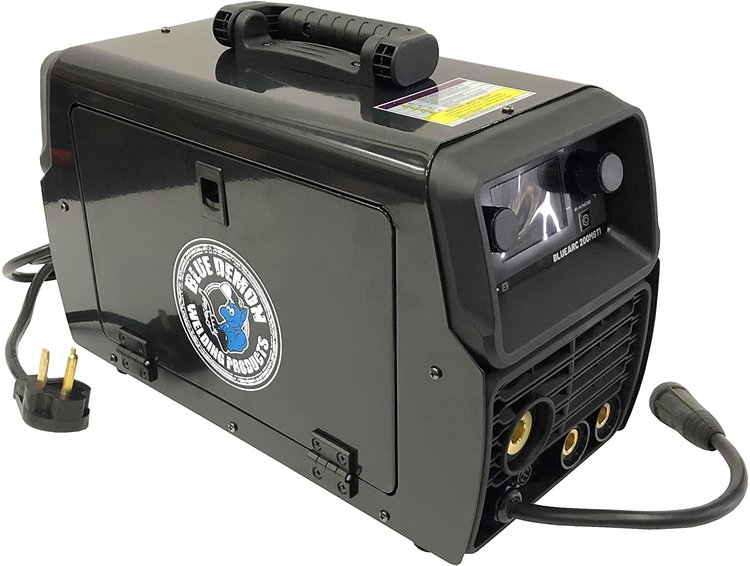

Breakdown of Included Items for Blue Demon BA-200MSTI

Features:

• Compatible with Gas Metal Arc Welding (GMAW), Flux-Cored Arc Welding (FCAW), Gas Tungsten Arc Welding (GTAW), and Manual Metal Arc Welding (SMAW)
• Tweco-style back-end connections and consumables
• Insulated Gate Bipolar Transistors (IGBT) inverter technology provides current control and stable welding performance
• A closed feedback circuit and invariable voltage output balances voltage up to ±15-percent
• Electron reactor control delivers excellent welding bead shaping and minimizes splash
• The front LCD screen has a user-friendly interface and can display preset current and voltage levels - the voltage can be preset and displayed by the voltmeter when not welding
• Welding current and welding voltage can be observed simultaneously
• Adjustable burn-back time
• A slow wire feed provides reliable arc starting and removes the melting ball after welding
• The wire feed is separated from the welding machine for a wide welding operation range

Technical Specifications:

• Power supply voltage: Single-phase 220 V +/-15-percent
• Input current: 36 Amp
• Power supply capacity (KVA): 8
• Current adjustment range: 50~200 Amp
• Output voltage: 15~24 V
• Rated output current: 200 Amp
• Rated output voltage: 24 V
• Rated duty cycle: 30-percent
• Power factor: 0.75
• Efficiency: 85-percent
• Wire feeder type: External/Internal
• Post-flow time: 1 second(s)
• Welding wire diameter: 0.600 mm x 0.800 mm x 1 mm
• Dimensions: 18.900 in. L x 12.200 in. W x 16.900 in. H
• Machine weight: 37.40 lbs. (17 kg)
• Plate thickness: ≥ 0.800 mm
• Insulation class: F
• Protection class: IP21S
