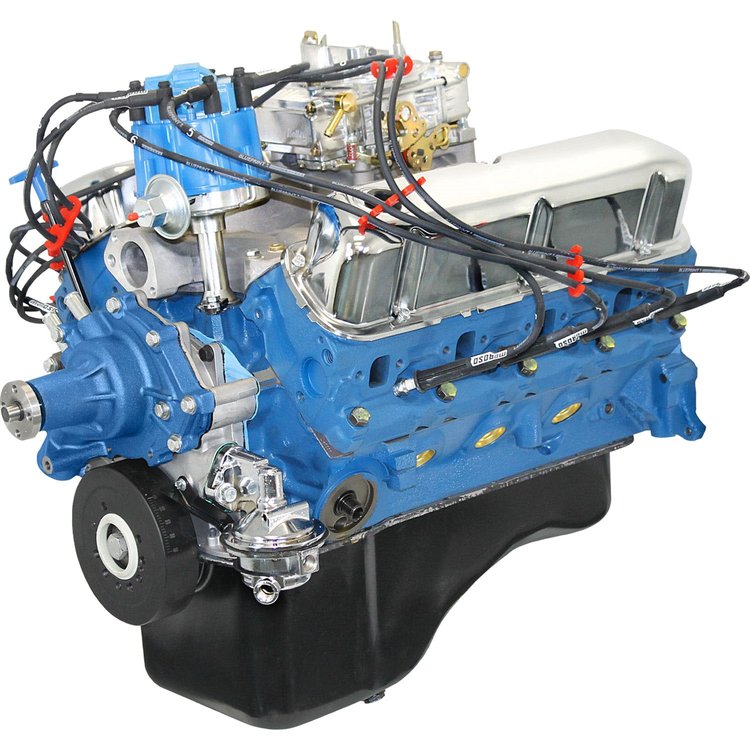

Ford Small Block 302ci Dress Crate Engine 300HP 336TQ w/ Cast Iron Heads

Name: Ford Small Block 302ci Dress Crate Engine 300HP 336TQ w/ Cast Iron Heads
Brand: BLUEPRINT ENGINES
SKU: 138-BP3024CTC
Price: 6149.00 USD
Availability: InStock

^$6,149⁰⁰

Truck Freight

Ships on 09/17/2026

Lowest Price Guarantee

Dress Engine

300HP / 336TQ
50 oz. External Balance
Cast Iron Cylinder Heads

Technical Notes:
Part Number: BP3024CTC
Fuel Delivery Type: Carbureted
Spark Plug: Champion 406
Spark Plug Gap: .040"
Harmonic Balancer: 50 Ounce, 6.4" Diameter
Flexplate/Flywheel: 50 Ounce Weighted (NOT Included)
Stall Converter: 1800-2200 rpm
Intake Manifold: Dual Plane, Satin Aluminum Finish
Fuel Recommendation: 87 Octane
Timing (Initial/Total Advance): Initial Timing - 12° and Total Timing 32°
Firing Order: 1,3,7,2,6,5,4,8
This engine will not work for applications requiring EGR
Engine Break-In Procedure
Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.
Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.
At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine. For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 1800-2200 rpm
Recommended Fuel: 87 Octane

Block:

Seasoned Ford 302ci Block
2-Bolt Main
1-Piece Rear Main Seal
Square and Parallel Decked
Align Honed Main Bearing Bore
Cylinders are Sonic Tested for Thickness
Cylinders Honed on a Computer Controlled Machine to within .0002'' Straightness and Roundness

Rotating Assembly:
Cast Iron Crank
3.000" Stroke
50 oz. Harmonic Balancer Required (Not Included with Base Engine)
Hypereutectic Pistons
9.0:1 Compression Ratio

Cylinder Heads:
Seasoned Ford Cast Iron Cylinder Heads

Camshaft Specs:
Hydraulic Roller Cam (Blueprint recommends a steel distributor gear)
Duration @ .050'' Lift: 218° Intake / 226° Exhaust
Lift: .543'' Intake / .554'' Exhaust
Camshaft is degreed to ensure maximum horsepower

Timing Specifications:
Initial Timing: 14°
Total Timing: 34°
Firing Order: 1-3-7-2-6-5-4-8
Spark Plugs: Champion 406 with a .040" Gap Recommended (Not Included with Base Engine)

Other Features:
New Front Sump Oil Pan
New Timing Cover
New Valve Covers
Brass Freeze Plugs
Painted Ford Blue

Additional Notes:
Recommended Harmonic Balancer: External
Recommended Flexplate / Flywheel: 50 Ounce Weighted
Not for EGR Applications

JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
