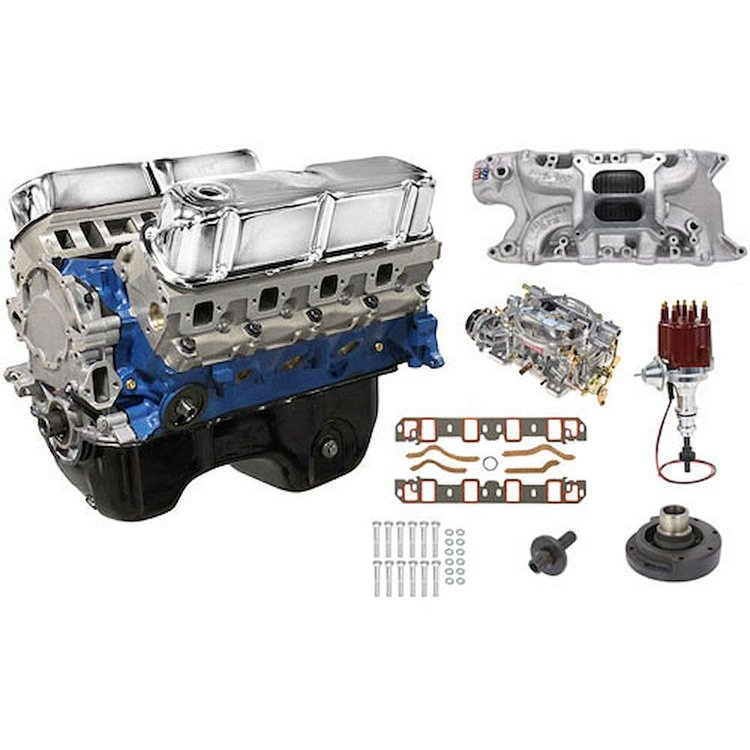

Ford Small Block 306ci Base Crate Engine Kit 370HP 350TQ

Name: Ford Small Block 306ci Base Crate Engine Kit 370HP 350TQ
Brand: BLUEPRINT ENGINES
SKU: 138-BP3060CTK
Price: 7218.65 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

Ford 306cid Base Crate Engine Kit

370HP/350TQ

50oz External Balance
Includes:

Intake Manifold

Carburetor

Harmonic Balancer

Balancer Bolt

Intake Gaskets & Bolts

Distributor

Kit Includes:

Blueprint Engines Small Block Ford 306ci / 370HP / 350TQ - p/n 138-BP3060CT
Edelbrock Performer RPM 302 Intake Manifold - p/n 350-7121
Edelbrock Performer 750cfm Electric Choke Carburetor - p/n 350-1411
JEGS Performance Harmonic Balancer - p/n 555-51661
ARP Harmonic Damper Bolt - p/n 070-150-2501
JEGS Intake Manifold Gaskets - p/n 555-210200
JEGS Intake Manifold Bolts - p/n 555-83210
JEGS SSR Billet Distributor - p/n 555-40055

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 1800-2200 rpm
Recommended Fuel: 91 Octane

Block:

Seasoned 302ci Block (+.030'')
2-Bolt Main
1-Piece Rear Main Seal
Square and Parallel Decked
Align Honed Main Bearing Bore
Cylinders are Sonic Tested for Thickness
Cylinders Honed on a Computer Controlled Machine to within .0002'' Straightness and Roundness

Rotating Assembly:
Cast Steel Crank
3.000" Stroke
5.155" Connecting Rods
50 oz. 6.4" Diameter Harmonic Balancer (Not included with Base engine)
Hypereutectic Pistons
Hastings Moly Piston Rings
Melling High Volume Oil Pump
Cloyes Double Roller Timing Chain
9.5:1 Compression Ratio

Cylinder Heads:
Blueprint Aluminum Cylinder Heads
Hardened Retainers and Springs
2.02 Swirl Polished Intake Valves
1.60 Swirl Polished Exhaust Valves
58-60cc Combustion Chamber
190cc Intake Ports

Camshaft Specs:
Hydraulic Roller Cam (Blueprint recommends a steel distributor gear)
Duration @ .050'' Lift: 218° Intake / 226° Exhaust
Lift: .543'' Intake / .554'' Exhaust
Lobe Separation: 112°
Camshaft is degreed to ensure maximum horsepower

Timing Specifications:
Initial Timing: 10-16°
Total Timing: 32-34°
Firing Order: 1-3-7-2-6-5-4-8
Spark Plugs: Champion 792 with a .045" Gap Recommended (NOT Included)

Other Features:
New Dual Sump Oil Pan
New Timing Cover
New Valve Covers
Brass Freeze Plugs
Painted Ford Blue

Dress Model Includes:
Blueprint Dual Plane Satin Aluminum Finish Intake Manifold
Holley 600cfm Vacuum Secondary Carburetor or Holley Sniper EFI System
HEI Distributor & Coil
50oz. 6.40" Diameter Harmonic Balancer

"Drop In" Dress Model Includes:
Blueprint Dual Plane Satin Aluminum Finish Intake Manifold
Holley 600 cfm Vacuum Secondary Carburetor
9" Diameter Chrome Air Cleaner
HEI Distributor & Coil
Spark plug Wires & Plugs
Standard Rotation Water Pump, V-Belt style
Mechanical Fuel Pump & Stainless Steel Fuel Pump to Carb Supply Line
Chrome Water Neck
50 oz. 6.40" Diameter Harmonic Balancer

Additional Notes:
Requires a V-belt Standard Rotation Water Pump and Belt System
Recommended Oil: 10W30, Non-Synthetic
Recommended Flexplate / Flywheel: 50 Ounce Weighted
Not for EGR Applications
JEGS Easy Kits are designed by JEGS high-performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
