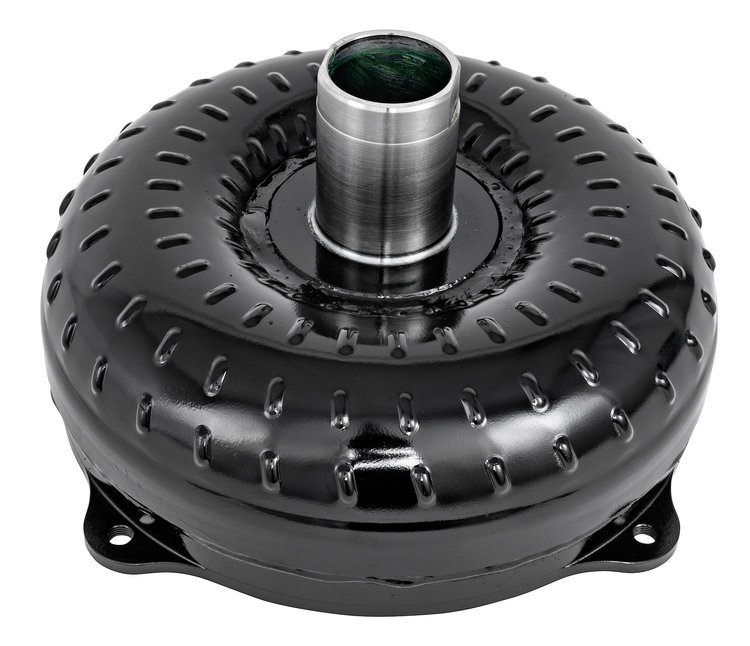

Torque Converter for Ford C4 [2300-2500 RPM Stall]

Name: Torque Converter for Ford C4 [2300-2500 RPM Stall]
Brand: JEGS
SKU: 555-60407
Price: 299.99 USD
Availability: InStock

^$299⁹⁹$323.99You Save$24.00

6 left in stock

Ships Today

Lowest Price Guarantee

Ford C4

Torque Converter

Fits Ford C4 Transmissions

2300-2500 RPM Stall Speed

10 in. Diameter, 26-Spline Input

10.500 in. Bolt Circle, 1.375 in. Crank Pilot

Requires 3/8-16 Grade 8 Bolts

Rated to 500 HP

JEGS 555-60407 Ford C4 Torque Converter Features:

Fits 1970-1981 Ford C4 Transmissions
2300-2500 RPM Stall Speed
10 in. Diameter
26-Spline Input Shaft
10.500 in. Flexplate Bolt Circle
1.375 in. Crank Pilot
Hardened Chrome Moly Impeller Hub
Torrington Style Encased Bearings
Modified Extreme Duty Stator
No Anti-Ballooning Plate
Four-Corner Tac-Welded or Furnace-Brazed Fins

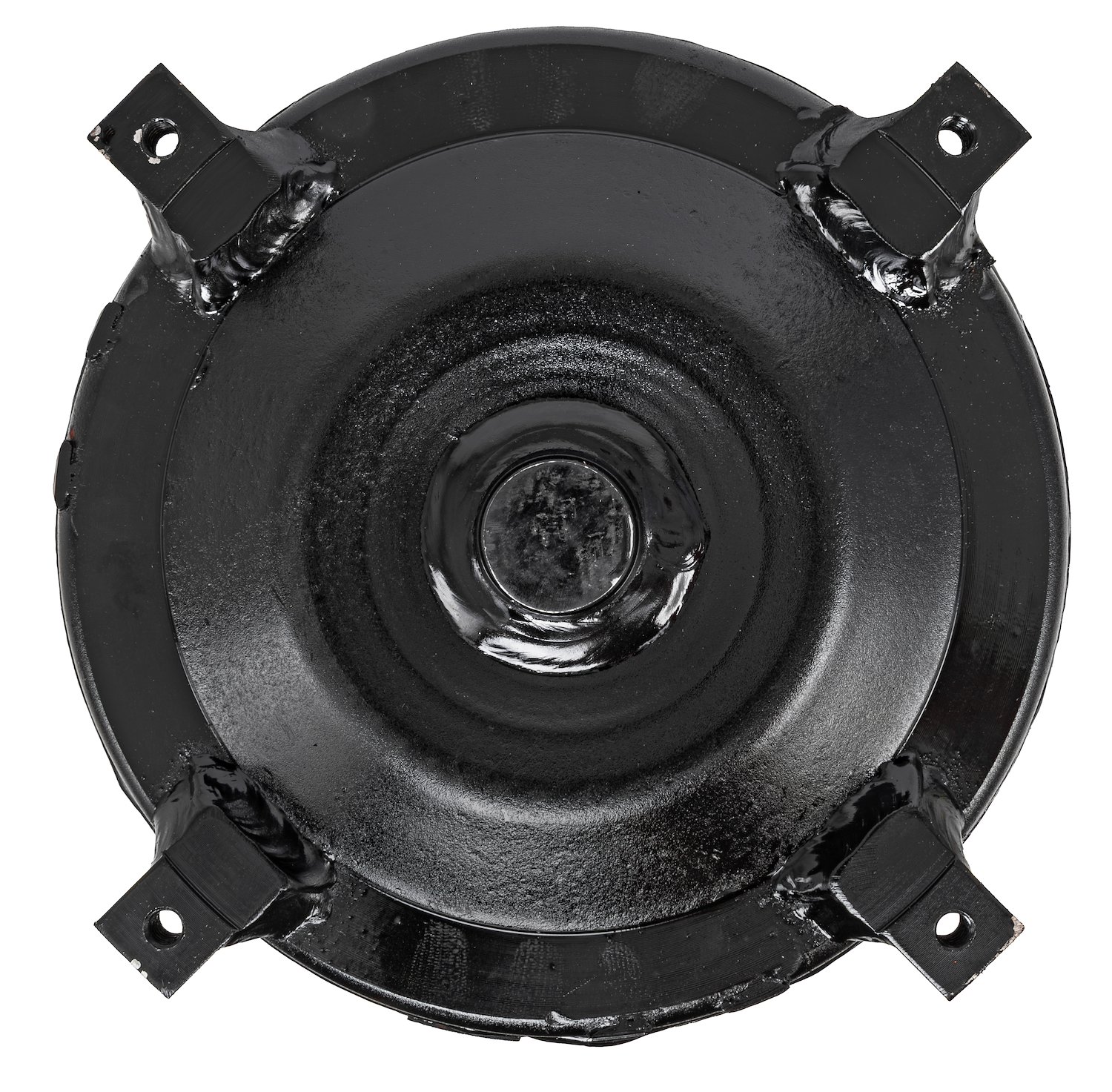

3 Welded Pads with 3/8-16 Threads for Attaching the Converter Bolts
Leak and Pressure Tested
Digitally Balanced
Rated for Use up to 500 HP

JEGS 555-60407 Ford C4 Torque Converter Notes:

All Stall RPMs Will Vary Depending on Engine Set-Up, Vehicle Weight, Gear Ratio, and Tire Height
Fits 1970-1981 C4 Using the Case-Fill Dipstick
For Use with Grade-8 Hardware Only
Use Blue Loctite on the Torque Converter Bolts
Use Type F Transmission Fluid for Best Results
An Additional Transmission Cooler is Recommended

High-Performance Street/Strip Torque Converters for Cars and Trucks

JEGS Street/Strip Performance Torque Converters are top-of-the-line products made with high-quality components and assembled using the latest converter technology. Designed to handle up to 500 horsepower, these JEGS Performance Torque Converters are OEM factory-sized, ensuring lower operating temperatures and optimal torque multiplication. They are available for Chrysler/Dodge, Ford, and GM transmissions in various stall ranges to meet your performance requirements. JEGS converters are not designed for nitrous, turbo, or blower applications. JEGS converters are not designed for nitrous, turbo, or blower applications.

JEGS Also Offers These Optional Performance Torque Converters

Part TypeAutomatic Transmission Torque Converter

Product LineJEGS Street/Strip Performance Torque Converters

BrandJEGS

Package Height7.8

Package Width13.1

Package Length13.2

Weight21.5 PG

Anti-Ballooning PlateNo

Part CategoryPerformance Parts

Crank Pilot Diameter1.375 in (34.925 mm)

Stall Speed (Rpm)2300-2500
