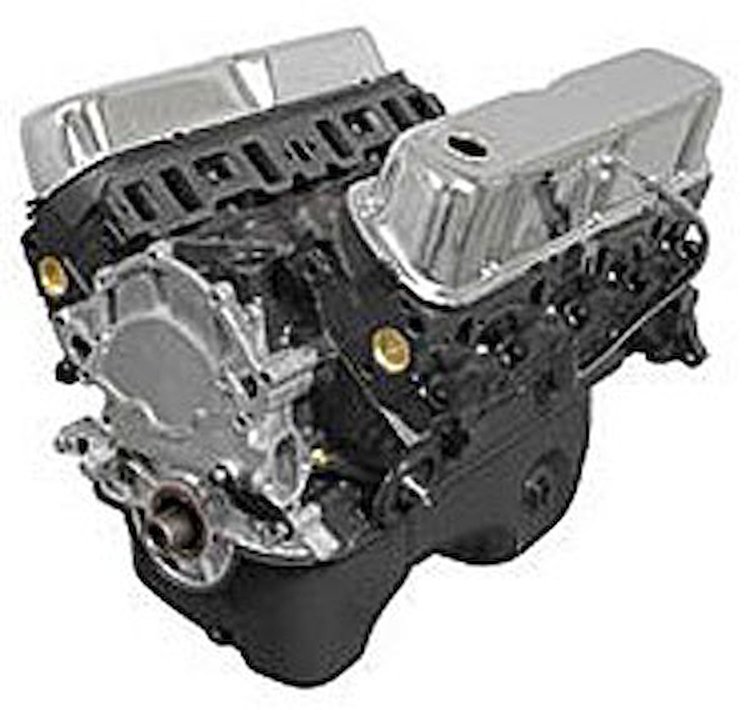

Vehicle Info NeededSmall Block Ford 331ci Stroker Base Engine 330HP/360TQ
Ships on 09/16/2026
Lowest Price Guarantee- Small Block Ford 331ci Stroker Base Engine
- 330HP/360TQ
Engine Break-In Procedure
Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.
Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.
At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine. For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.
- Seasoned block bored .040'' over
- 2-Bolt Main
- Square and parallel decked
- Align honed main bearing bore
- Cylinders are sonic tested for thickness
- Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness
Rotating Assembly: - Cast Steel 3.250" Stroke Crank & 5.4" Rods
- Keith Black hypereutectic pistons
- Hastings Moly rings
- Clevite bearings
- Balanced rotating assembly
- Melling high volume oil pump
- Heavy duty double roller timing set
Cylinder Heads: - Cast Iron Heads, 62cc chamber
- 2.02'' swirl polished intake valves
- 1.60'' swirl polished exhaust valves
Camshaft Specs: - Hydraulic Roller Cam
- Duration @ .050'' Lift: 218 Intake / 226 Exhaust
- Lift: .543'' Intake / .554'' Exhaust
- Lobe Separation: 112°
Other Features: - New Chrome valve covers
- New oil pan
- New timing cover
- Brass freeze plugs
- 9.5:1 compression
Dress Model Adds: - Professional Dual plane satin aluminum Intake Manifold
- Holley 600 cfm Electric Choke Vacuum Secondary Aluminum Street Carburetor - 510-0-80457SA
- Distributor & Coil
Note: Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
- Part Number: BP3314CT
- Fuel Delivery Type: Carbureted, 600cfm
- Spark Plug: NGK 2817
- Spark Plug Gap: .045"
- Harmonic Balancer: 28.4 Ounce, 6.4" Diameter
- Flexplate/Flywheel: 28.4 Ounce Weighted
- Intake Manifold: Dual plane
- Fuel Recommendation: 91 Octane
- Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
- Firing Order: 1-3-7-2-6-5-4-8
Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.
Recommended Stall Converter: 1800-2200 rpm
Recommended Fuel: 91 Octane
