Small Block Chevy 350ci Engine with EFI System

Name: Small Block Chevy 350ci Engine with EFI System
Brand: BLUEPRINT ENGINES
SKU: 138-BP3504CT1K3
Price: 4068.33 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

Small Block Chevy 350ci Engine with EFI

325 HP/375 TQ

Pre-87' Cast Iron Heads
Includes:

Base Engine

EFI System

Return Spring

Intake Manifold

Intake Gasket & Bolts

Distributor

Carb Studs

RTV

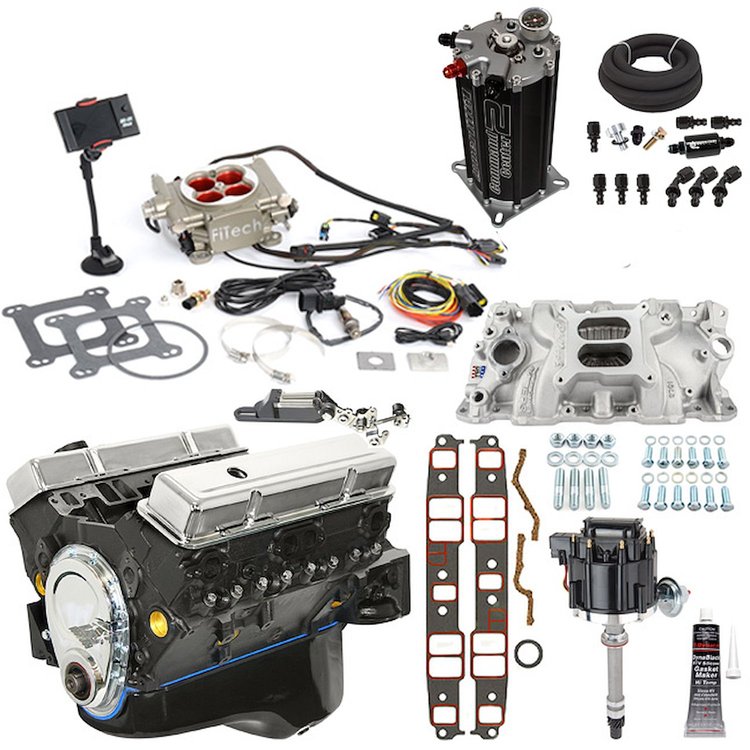

Kit Includes:

Blueprint Engines Small Block Chevy 350ci Base Crate Engine with Cast Iron Heads - 138-BP3504CT1
FiTech GoStreet EFI 400 HP Throttle Body Kit - 546-30003
Hyperfuel Go EFI Fuel Command Center 2 - 493-40004
FiTech Throttle Return Spring & Bracket - 546-60011
Edelbrock Performer EPS Intake Manifold - 350-2701
JEGS Intake Manifold Gaskets - 555-210004
JEGS Intake Manifold Bolts - 555-83200
JEGS HEI Distributor - 555-40002
JEGS Carburetor Studs - 555-15840
Dynatex DynaBlack RTV Silicone Gasket Maker - 555-28035

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 1800-2200 rpm
Recommended Fuel: 87 Octane

Block:

2-Bolt Main
1-Piece Rear Main Seal
Passenger Side Dipstick
Align Honed Main Bearing Bore
Cylinders Honed on Computer Controlled Machine to Within .0002" Straightness and Roundness
Cylinders are Sonic Tested for Thickness

Rotating Assembly:
Cast Steel Crank
3.480" Stroke
5.700" Rod Length
9.1:1 Compression Ratio
Hypereutectic Pistons
Hastings Piston Rings
Hydraulic Flat Tappet Camshaft
Internal Front, External Rear Balanced (Late 350 Weighted Flexplate Recommended, Not Included)

Cylinder Heads:
GM Early Cast Iron Cylinder Heads (pre-87)
64cc Combustion Chamber
Hardened Retainers and Springs
2.02" Swirl Polished Intake Valves
1.60" Swirl Polished Exhaust Valves

Camshaft Specs:
Hydraulic Flat Tappet
Lift: .480'' Intake / .486'' Exhaust
Duration @ .050'' Lift: 224° Intake / 230° Exhaust
110° Lobe Separation
1.5 Rocker Arms

Timing Specifications:
Initial Timing: 14°
Total Timing: 34°
Firing Order: 1-8-4-3-6-5-7-2
Spark Plugs: AC Delco 41-993 with a .045" Gap Recommended (Not Included)

Other Features:
New chrome valve covers
New chrome timing cover
New oil pan
Brass freeze plugs

Dress Model Adds:
Blueprint Dual Plane Aluminum Intake Manifold, Satin Finish
Blueprint HEI Distributor & Coil
Standard Rotation Water Pump
Harmonic Balancer

JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
