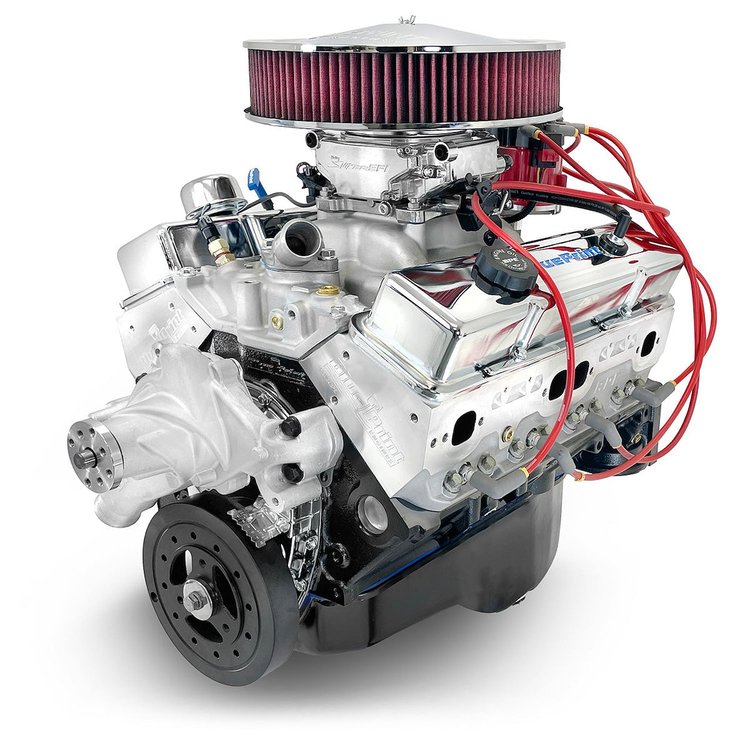

Blueprint Engines BP350CTFD 350 ci. Deluxe Dressed Fuel Injected Engine [341 HP]:

• Block:
  • NEW BluePrint Cast Iron Block
  • 4-Bolt Main
  • 4 in. Bore
  • 1-Piece Rear Main Seal
  • Mechanical Fuel Pump Provision
  • Right/Passenger Side Dipstick
  • Drilled and Tapped for Clutch Linkage
• Rotating Assembly:
  • Cast Crankshaft
  • 3.480 in. Stroke
  • Forged 5.700 in. Connecting Rods
  • Hypereutectic Pistons
  • Internally Balanced Front/Externally Balanced Rear
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads H8002K
  • Compression Ratio: 9.2:1
  • 64 cc Chambers
  • 2.02 in. Intake/1.60 in. Exhaust Valves
  • 195 cc Intake/75 cc Exhaust Runners
• Cam Specs:
  • Cam Type: Hydraulic Roller
  • .477 Intake/.471 Exhaust Lift
  • 202 Intake/212 Exhaust Duration @ .050
  • Lobe Seperation (LSA) 115
• Ignition Timing:
  • 32 Degrees Total at 3500 RPM
• Also Includes:
  • Holley Sniper 2 EFI
  • Valve Covers
  • Rear Sump Oil Pan
  • Timing Cover
  • Aluminum Intake
  • HEI Distributor
  • Harmonic Balancer
  • Spark Plugs & Wires
  • Standard Rotation Long Style Water Pump
  • Water Neck w/Thermostat

Blueprint Engines BP350CTFD 350 ci. Deluxe Dressed Fuel Injected Engine [341 HP] Notes:

• Makes an excellent cruiser and daily driver engine
• Creates up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
• The performance aluminum cylinder heads on this engine feature a .500 in. raised port vs OEM

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
