This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

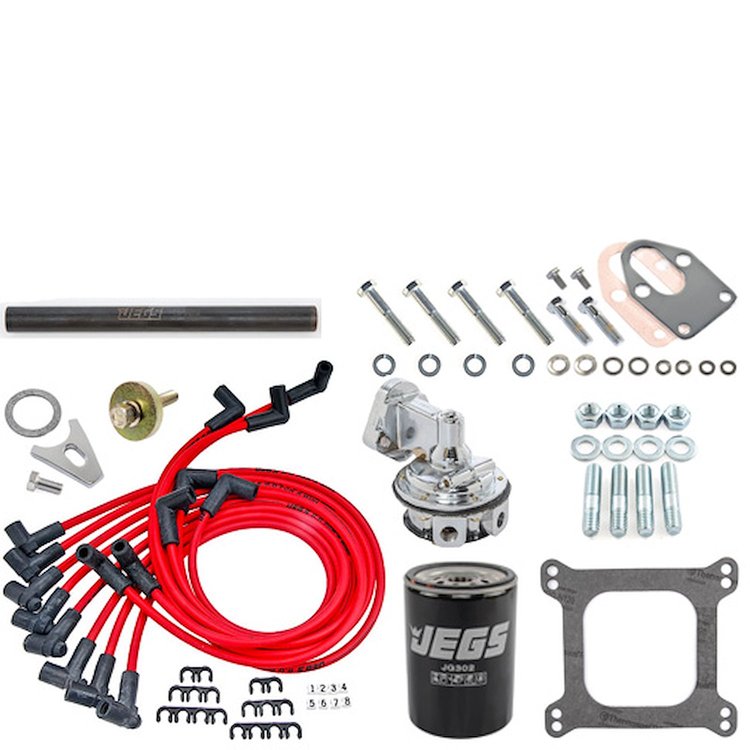

Includes:
Kit Includes:
- JEGS Performance Oil Filter - 555-JG302
- JEGS 8.0mm Red Hot Pow'r Wires - 555-40210
- JEGS Mechanical Fuel Pump - 555-15950
- JEGS Fuel Pump Mount Plate kit - 555-50580
- JEGS Balancer Bolt - 555-82800
- JEGS Long Water Pump Bolt Kit - 555-83901
- JEGS Distributor Hold Down - 555-40691
- JEGS Carburetor Stud Kit - 555-15840
- JEGS Square Flange Carburetor Base Gasket - 555-16100
- JEGS Bronze Tip Fuel Pump Pushrod - 555-15929
Blueprint Small Block Chevy Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.
Show More
Recommended Stall Converter: 1800-2200 rpm
Recommended Fuel: 91 Octane
Block:
- 4-bolt main block
- Square and parallel decked
- Align honed main bearing bore
- Cylinders are sonic tested for thickness
- Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness
Rotating Assembly: - 3.48'' stroke cast iron crankshaft
- Chevy 5.7'' heavy beam rods with 150,000psi bolts
- Keith Black hypereutectic pistons
- Hastings Moly rings
- Clevite bearings
- Internally balanced rotating assembly
- Melling high volume oil pump
- Heavy duty double roller timing set
Cylinder Heads: - GM Vortec cast iron heads
- Hardened retainers and 1.25'' diameter valve springs
- 2.02'' swirl polished intake valves
- 1.60'' swirl polished exhaust valves
- Hardened pushrods
Camshaft Specs: - Hydraulic Flat Tappet
- Duration @ .050'' Lift: 224 Intake / 230 Exhaust
- Lift: .480'' Intake / .486'' Exhaust
- Lobe Separation: 110°
Other Features: - Professional Products dual-plane satin aluminum intake
- New chrome valve covers
- New 5-quart oil pan
- Brass freeze plugs
- 9.5:1 compression
Dress Model Adds: - Holley 600 cfm Electric Choke Vacuum Secondary Aluminum Street Carburetor - 510-0-80457SA
- Edelbrock water pump
- Edelbrock fuel pump
- Distributor
- MSD Coil
- MSD spark plug wires
- Professional Products balancer
- Braided fuel line
Note: This engine will not work for applications requiring EGR.
Other Specifications:
Does not include flywheel/flexplate. Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet. - Part Number: BP3550CT
- Fuel Delivery Type: Carbureted, 600 cfm
- Spark Plug: AC Delco 41-993
- Spark Plug Gap: .045"
- Harmonic Balancer: Non Weighted - 8" diameter
- Flexplate/Flywheel: late 350 weighted
- Intake Manifold: Dual plane
- Fuel Recommendation: 91 Octane
- Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
- Firing Order: 1-8-4-3-6-5-7-2
JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
