Budget Stomper Small Block Chevy 355ci Base Engine Install Kit
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

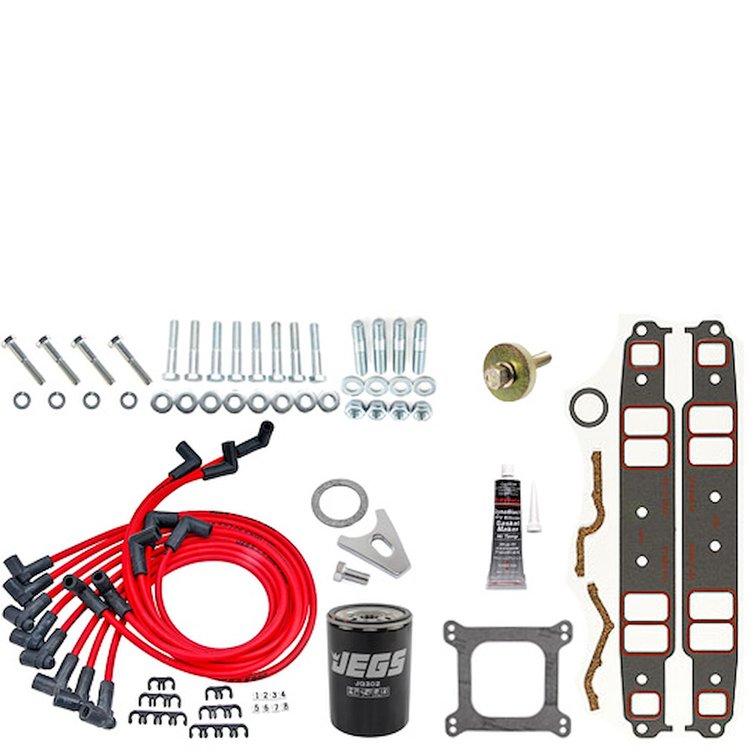

- Small Block Chevy 355ci Base Engine Install KitIncludes:
- Oil Filter
- Spark Plug Wires
- Balancer Bolt
- Water Pump Bolts
- Gasket Maker
- Intake Gaskets
- Distributor Hold Down
- Carburetor Studs & Gasket
- Intake Bolts
Kit Includes:
- JEGS Performance Oil Filter - 555-JG302
- JEGS 8.0mm Red Hot Pow'r Wires - 555-40210
- JEGS Balancer Bolt - 555-82800
- JEGS Long Water Pump Bolt Kit - 555-83901
- Dynatex DynaBlack RTV Silicone Gasket Maker - 555-28035
- JEGS Intake Manifold Gaskets - 555-210002
- JEGS Distributor Hold Down - 555-40691
- JEGS Carburetor Stud Kit - 555-15840
- JEGS Carburetor Base Gasket - 555-16100
- JEGS Intake Manifold Bolts - 555-83201
- 4-bolt main block, 1 piece rear main seal
- Square and parallel decked
- Align honed main bearing bore
- Cylinders are sonic tested for thickness
- Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness
Rotating Assembly: - Blueprint premium cast iron crankshaft (1 piece rear main seal)
- Chevy heavy beam rods with 150,000 PSI bolts
- Hypereutectic pistons; 9.5 to 1 Compression
- Hastings Moly rings
- Hydraulic flat tappet cam
- Melling high volume oil pump
- Heavy duty double roller timing set
Cylinder Heads: - Blueprint premium center bolt cast iron (1987-1995 intake bolt pattern)
- Hardened retainers and valve springs
- 2.02'' swirl polished intake valves
- 1.60'' swirl polished exhaust valves
Camshaft Specs: - Hydraulic Flat Tappet
- Duration @ .050'' Lift: 229 Intake / 230 Exhaust
- Lift: .480'' Intake / .486'' Exhaust
Other Features: - New chrome valve covers
- New chrome timing cover
- New oil pan
- Brass freeze plugs
Dress Model Adds: - Aluminum intake manifold
- Holley 600 cfm Electric Choke Vacuum Secondary Aluminum Street Carburetor - 510-0-80457SA
- HEI distributor
Note: This engine will not work for applications requiring EGR.
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet. - Part Number: BP35511CT1
- Fuel Delivery Type: Carbureted, 600 cfm
- Spark Plug: NGK UR5
- Spark Plug Gap: .035"
- Harmonic Balancer: Non Weighted - 8" diameter
- Flexplate/Flywheel: Late 350 Weighted
- Stall Converter: 1800-2200 rpm
- Intake Manifold: N/A
- Fuel Recommendation: 91 Octane
- Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
- Firing Order: 1-8-4-3-6-5-7-2
JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
Blueprint Small Block Chevy Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.
Recommended Stall Converter: 2000-2400 rpm
Recommended Fuel: 91 Octane
