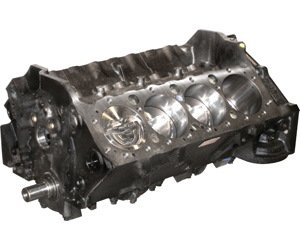

Short Block Assembly Small Block Chevy 383ci Stroker
Product Discontinued
BLUEPRINT ENGINESPART NUMBER: 138-BP3830

Short Block Assembly Small Block Chevy 383ci Stroker

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy - Small Block
Short Block Assembly
  • Small Block Chevy 383ci Stroker
  • 2-Piece Rear Main Seal
  • 4-Bolt Main Caps
  • Hypereutectic Flat Top Pistons
  • 11.1:1 Compression Ratio with 64cc Combustion Chamber Cylinder Heads & .041'' gasket

    Approximate Compression Ratio
    58cc Chamber11.9:1
    64cc Chamber11.1:1
    68cc Chamber10.6:1
    72cc Chamber10.1:1
    76cc Chamber9.7:1

    Rotating Assembly:

    • Hastings Moly rings
    • Keith Black hypereutectic pistons
    • Standard or 10-10 undersized journals on cast crank
    • Clevite bearings
    • Chevy 5.7' heavy beam rods
    • Blacklight magnufluxed
    • Stress relieved and shot peened
    • Indexed and stroke corrected during grinding
    • Oil hole chamfered for improved flow
    • Super 'micro-polish' for superior finish

      Note: This engine requires the use of an external balance design damper. A balance plate is included with this engine, if it's retained then an internal balance design flexplate or flywheel is required. To use an external balance design flexplate or flywheel the balance plate must be removed before installation.



    • Part TypeEngine Short Block
    BrandBLUEPRINT ENGINES
    Package Height24.0
    Package Width26.5
    Package Length30.5
    Weight379.0 PG
    Part CategoryPerformance Parts
    Main Journal Type350 mains
    Crankshaft MaterialCast steel
    Engine Block MaterialCast iron
    Harmonic Balancer IncludedNo
    QuantitySold individually
    Flexplate IncludedNo
    AssembledYes
    Connecting Rod Beam StyleI-beam
    Main Bolt Style4-bolt
    Deck Height9.025 in (229.235 mm)
    Flywheel IncludedNo
    Engine BalanceExternal
    Rear Main Seal Style2-piece
    Short Block Piston StyleFlat top
    Piston MaterialHypereutectic aluminum
    Oil Pan IncludedNo
    Timing Cover IncludedNo
    Vendor Part NumberBP3830
    Package Qty1
    Package TypeEA
