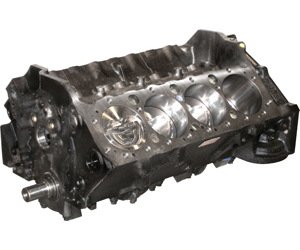

Short Block Assembly Small Block Chevy 383ci Stroker

Product Discontinued

BLUEPRINT ENGINESPART NUMBER: 138-BP3831

Short Block Assembly Small Block Chevy 383ci Stroker

Name: Short Block Assembly Small Block Chevy 383ci Stroker
Brand: BLUEPRINT ENGINES
SKU: 138-BP3831
Price: 2401.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy - Small Block

Small Block Chevy 383ci Stroker
2-Piece Rear Main Seal
4-Bolt Main Caps
Hypereutectic Dome Top Pistons

12.44:1 Compression Ratio with 64cc Combustion Chamber Cylinder Heads & .041'' gasket

Approximate Compression Ratio
58cc Chamber	Not Recommended
64cc Chamber	12.44:1
68cc Chamber	11.81:1
72cc Chamber	11.25:1
76cc Chamber	10.74:1

Rotating Assembly:

Hastings Moly rings
Keith Black hypereutectic pistons
Standard or 10-10 undersized journals on cast crank
Clevite bearings
Chevy 5.7' heavy beam rods
Blacklight magnufluxed
Stress relieved and shot peened
Indexed and stroke corrected during grinding
Oil hole chamfered for improved flow
Super 'micro-polish' for superior finish

Features:

Cast Iron Crankshaft
Cylinder wall thickness ''sonic tested''
Cylinders bore angle corrected to be 90° perpendicular to crank centerline
Cylinder bore centerline corrected to be exactly centered over crank centerline
Decks machined parallel to crank centerline
Right and left side decks machined equal distance from crank centerline
Main bearing bores align honed to correct size and straightness
Cylinders computer honed to tolerance of 200 millionths of an inch
Cylinders plateau finished for virtually instant break-in
Screw-in oil galley plugs installed in place of soft plugs

Part TypeEngine Short Block

Product LineBlueprint Engines Cast Iron Crankshaft Short Block Assemblies

BrandBLUEPRINT ENGINES

Package Height27.25

Package Width30.25

Package Length32.0

Weight344.0 PG

Part CategoryPerformance Parts

Main Journal Type350 mains

Crankshaft MaterialCast steel

Engine Block MaterialCast iron

Harmonic Balancer IncludedNo

QuantitySold individually

Flexplate IncludedNo

AssembledYes

Connecting Rod Beam StyleI-beam

Main Bolt Style4-bolt

Deck Height9.025 in (229.235 mm)

Flywheel IncludedNo

Engine BalanceExternal

Rear Main Seal Style2-piece

Short Block Piston StyleDome

Piston MaterialHypereutectic aluminum

Oil Pan IncludedNo

Timing Cover IncludedNo

Vendor Part NumberBP3831

Package Qty1

Package TypeEA
