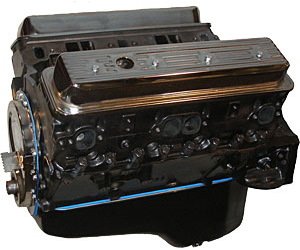

Budget Stomper Small Block Chevy 383ci Base Engine w/Cast Iron Heads

Name: Budget Stomper Small Block Chevy 383ci Base Engine w/Cast Iron Heads
Brand: BLUEPRINT ENGINES
SKU: 138-BP3832CT1
Price: 3849.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

310HP/360TQ

Blueprint Engines BP3832CT1 Features:

You can get most versions built up to the intake manifold. Our base units come complete with oil pans, valve covers and front timing covers. We'll let you finish the engine out with your fuel and ignition systems. Base models are balanced, blueprinted and dyno tested. If you have good ?top end? components, use them on a BluePrint base model. * Some exceptions apply - please see individual engine specs for details.

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 2000-2200 rpm
Recommended Fuel: 91 Octane

Block:

4-bolt main block
1-piece rear main seal
Square and parallel decked
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

Rotating Assembly:
Premium cast iron crankshaft (1 piece rear main seal)
Chevy heavy beam rods with 150,000 PSI bolts
Hypereutectic pistons; 9.5 to 1 Compression
Hastings Moly rings
Hydraulic flat tappet cam
Melling high volume oil pump
Heavy duty double roller timing set

Cylinder Heads:
Blueprint premium center bolt cast iron (1987-1995 intake bolt pattern)
Hardened retainers and valve springs
2.02'' swirl polished intake valves
1.60'' swirl polished exhaust valves

Camshaft Specs:
Hydraulic Flat Tappet
Duration @ .050'' Lift: 229 Intake / 230 Exhaust
Lift: .480'' Intake / .486'' Exhaust

Other Features:
New chrome valve covers
New chrome timing cover
New oil pan
Brass freeze plugs

Dress Model Adds:
Aluminum intake manifold
Holley 750 cfm Manual Choke Vacuum Secondary Aluminum Street Carburetor - 510-0-3310S
HEI distributor

Note: This engine will not work for applications requiring EGR.
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BP3832CT1
Fuel Delivery Type: Carbureted, 750cfm
Spark Plug: NGK UR5
Spark Plug Gap: .035"
Harmonic Balancer: 400 ci weighted, 8" diameter
Flexplate/Flywheel: Late 350 Weighted
Intake Manifold: Single plane
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
Firing Order: 1-8-4-3-6-5-7-2
