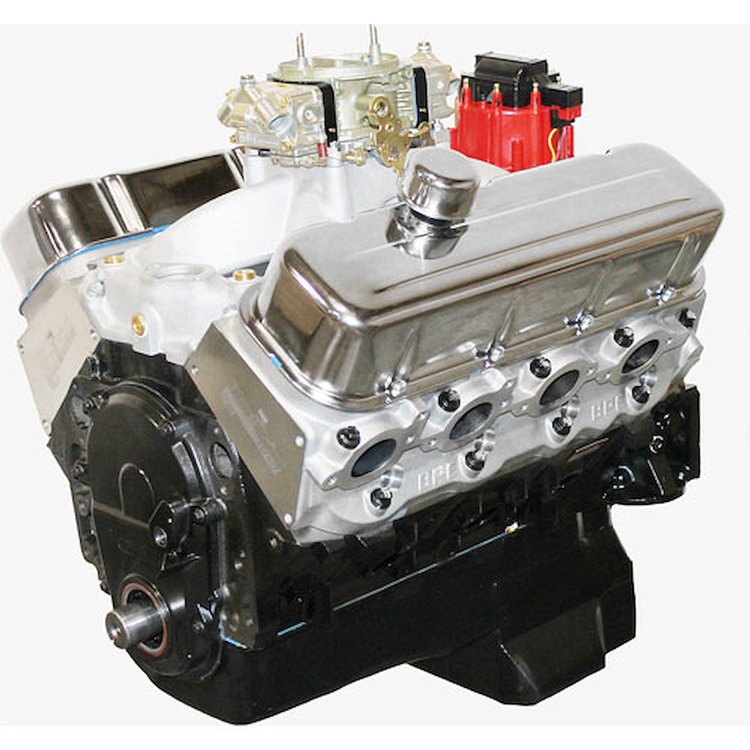

BB-Chevy 496ci Stroker Dress Engine 575HP/600TQ
Product Discontinued
BLUEPRINT ENGINESPART NUMBER: 138-BP4962CTC

BB-Chevy 496ci Stroker Dress Engine 575HP/600TQ

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Dress Engine
    BB-Chevy 496ci Stroker Dress Engine
  • 575HP/600TQ
  • 1-Piece Rear Main Seal

    Engine Break-In Procedure

    Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.

    Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.

    At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine.  For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Blueprint Big Block Chevy Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. These engines are dyno tested and include dyno sheets. Best of all they feature a 30 month/50,000 mile warranty.

  • Recommended Stall Converter: 2000-2400 rpm
  • Recommended Fuel: 91 Octane

JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

Part TypeEngine
Product LineBlueprint Engines GM Big Block Chevy 496 ci. Engines
BrandBLUEPRINT ENGINES
Package Height27.0
Package Width31.0
Package Length38.0
Weight560.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedNo
Cylinder Head MaterialAluminum
Air Cleaner IncludedNo
Carburetor IncludedYes
Carb Eo NumberN/A
Water Pump IncludedNo
EmissionNot Legal
Flexplate IncludedNo
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeChevy Big Block
Flywheel IncludedNo
Engine TypeHigh-Performance Crate Engine
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower575
Distributor IncludedYes
Camshaft StyleHydraulic roller tappet
Engine Block MaterialCast iron
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedNo
Harmonic Balancer IncludedNo
QuantitySold individually
Fuel DeliveryOne Carb
Rpm Power Range1800-5800
Engine BalanceExternal
Compression Ratio10.0:1
Oil Pan IncludedYes
Part FitmentSemi Universal
Engine Displacement496 ci.
Timing Cover IncludedYes
Spark Plugs IncludedNo
Vendor Part NumberBP4962CTC
Package Qty1
Package TypeEA
