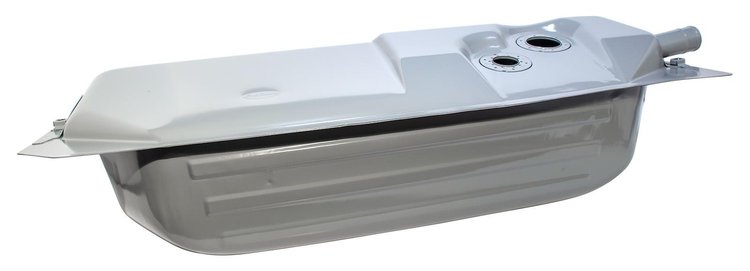

Bob Drake 81A-9002-FI Features:

Developed for fuel injection or thirsty carburetor systems, Drake’s extra capacity tank is built to deliver. Featuring a top mount fuel pick-up port, enlarged lower half with strengthening side ribs, multi-flange sender port, and a smooth powder coat finish, tank is ready to install in your stock style frame. Make your ride Drake Tank Strong™ and cruise easy. Fuel Injection or Carburetor Ready · Ready to serve fuel injection or high-performance carburetor systems. · Fuel pick-up port hole easily accepts Drake’s own pick-up unit or other common aftermarket units. · Planning to create something unique? Close off the pick-up port with included block off plate and locate your own outlet. Made for the Job · High strength steel with die-stamped side ridges keeps the Tank strong and sturdy while continuous seam welds hold the gas where it should be – inside. · Powder coat finish provides superior corrosion resistance for maximum protection against whatever nastiness the road might deliver. · Pressure tested before shipment. Features · Internally welded reservoir tray ensures fuel availability when you need it. No more fuel starvation when accelerating or cornering. · Fully baffled for slosh free rides. · Enlarged from 14 to 15.5 gallons, Drake’s tank has more of the fuel your demanding engine needs. · Drake’s exclusive multi-pattern fuel sender flange makes connections easy. Accepts VDO, Stewart Warner, Classic Instruments and Drake senders for original Ford gauges. Includes · x1 Tank. · x1 Fuel Sender Gasket. · x1 Fuel Pick-up Port Gasket. · x1 Fuel Pick-up Port Block Off Plate. · x1 Hardware Pack (for Sender and Pick-up). Tech Specs · Material: High strength steel with maximum protection powder coat finish (grey). · Dimensions (overall): 44-7/8 inch long x 15-1/4 inch wide x 11-1/8 inch deep. · Capacity: 15.5 gallons. · Sending Unit Port: Drake Multi-Flange. Accepts VDO, Stewart Warner, Classic Instruments and Drake senders. · Fuel Outlet: Top mount port accepts popular bolt-in pick-up units. · Filler Neck OD: 1-7/8 inch · Drain Plug: 1/4-18 NPT. · Mounting: 3/8-24 thread cage nuts welded at stock locations. Looking for some shine? This tank is also available in Stainless Steel ( 81A-9002-SS ). Would you rather stay stock? Drake has you covered with an original style tank ( 81A-9002 ).
