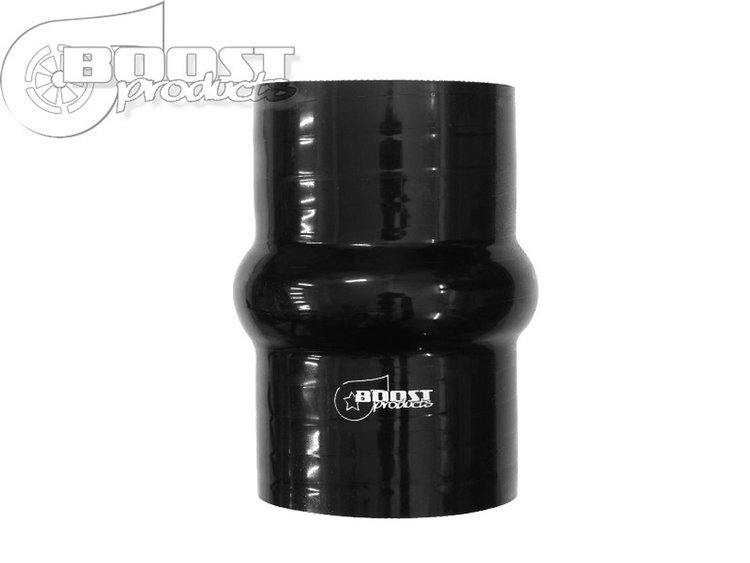

3252000890 Silicone Coupler, with single Hump, 89 mm (3-1/2 in.) I.D. [Black]

Name: 3252000890 Silicone Coupler, with single Hump, 89 mm (3-1/2 in.) I.D. [Black]
Brand: BOOST PRODUCTS
SKU: 353-3252000890
Price: 26.64 USD
Availability: InStock

^$26⁶⁴$29.60You Save$2.96

Ships Tomorrow

Lowest Price Guarantee

Couplers
Single Hump

Silicone Coupler

single Hump

89 mm (3-1/2 in.) I.D.

Black

Boost Products 3252000890 Features:

This BOOST Products Silicone Hose is reinforced with textile layers to be extreme pressure resistant and also to vacuums in your Air Charge System. These Hoses are suitable for your Intercooler system, Intake system, Water lines or similar. They can withstand up to 5 Bar and temperatures up to 220°, C. They are not to be used as Fuel or Oil line!Silicone Connectors with Hump, also known as Hump Hoses, Bulge Hoses or similar. The 'Hump&rdquo, in the middle allows the Connector to bend or to stretch. This results in a bendable Flexibility. Recommended for Throttle Valves or Intercoolers connected to the vehicles body, and similar Connections. For connection Intercooler pipes and Lines. Also suitable for Water Lines.After many tests we deliver best quality at the best price! The BOOST Products silicone hoses have achieved and many times even exceeded the quality of silicone hoses compared to ones made by well known manufacturers in quality tests. This silicone is durable and flexible, stable and color-proof after many years. Lots of well known company's in the tuning and motorsport areas rely on silicone hoses made by BOOST Products.The hoses have until 38mm 3 layers of fabric and 4.3mm wall thickness. From 41mm there are 4 layers and 5.3mm wall thickness. They come with a small subtle BOOST Products logo which proofs the silicone hoses' quality.

Size Chart / 1 Hump Hose
ID (mm)	Wall (mm)	Length (mm)	Length A (mm)	Length B (mm)	Min Burst (Bar)	Max Working (Bar)	Textile Layers
45	5	100	75	20	15.50	5.17	4
51	5	100	81	20	13.80	4.60	4
54	5	100	84	20	12.10	4.03	4
60	5	100	90	20	12.10	4.03	4
63	5	100	93	20	10.30	3.43	4
70	5	100	100	20	8.60	2.87	4
76	5	100	106	20	6.00	2.00	4
80	5	100	110	20	5.20	1.73	4
89	5	100	119	20	5.20	1.73	4
102	5	100	132	20	3.40	1.13	4

What you should consider with Silicone

- The diameter refers to the Inner diameter- When choosing the clamp take the Wall Thickness x2 for the right Size- Silicone Hoses are 1-3mm elastic- If you can't find the right size, choose the smaller one which is available

Inner Diameter: 89mm
Length: 100mm
Length A: 119mm
Length B: 20mm
Wall Thickness: 5.3mm
Textile Layers: 4
Temperature Range: -40-degreesC to 220-degreesC
Pressure resistant until: minimum 5bar
Colour: black (completely)

Premium Silicone Connections

Boost Products Silicone Hose Couplers, Elbows, and Reducers are reinforced with textile layers for exceptional resistance to high pressure and vacuum conditions in your air charge system. These connectors are ideal for use in intercooler systems, intake systems, water lines, and similar applications. They are designed to withstand pressures up to 5 bar and temperatures as high as 220°C (428°F). Please note, that they are not suitable for use as fuel or oil lines.

Part TypeTubing Coupler

Product LineBoost Products Silicone Hose Couplers, Elbows, and Reducers

BrandBOOST PRODUCTS

Package Height1.0

Package Width1.0

Package Length1.0

Weight1.0 PG

Part CategoryPerformance Parts

Part FitmentUniversal

Vendor Part Number3252000890

Package Qty1

Package TypeEA
