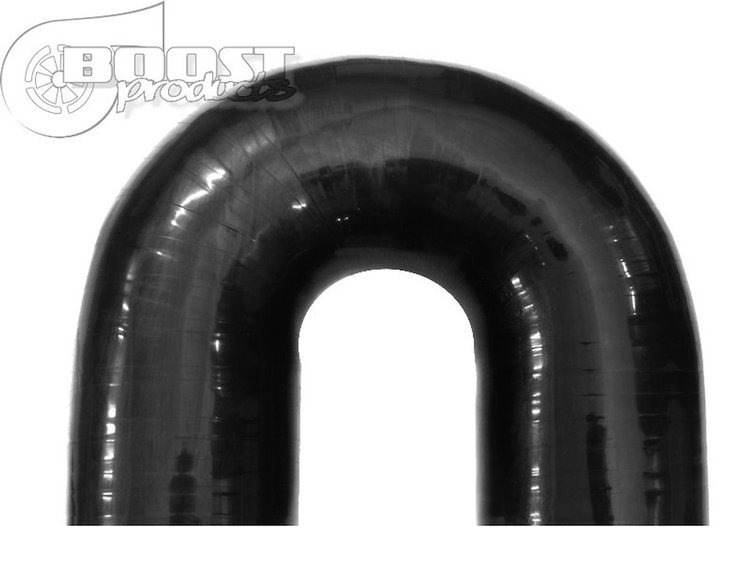

3256000080 Silicone Elbow, 180-Degrees, 8 mm (5/16 in.) I.D. [Black]

Name: 3256000080 Silicone Elbow, 180-Degrees, 8 mm (5/16 in.) I.D. [Black]
Brand: BOOST PRODUCTS
SKU: 353-3256000080
Price: 5.30 USD
Availability: InStock

^$5³⁰$5.89You Save$0.59

Ships Tomorrow

Lowest Price Guarantee

Elbows
180-Degrees

Silicone Elbow

180-Degrees

8 mm (5/16 in.) I.D.

Black

Boost Products 3256000080 Features:

This BOOST Products Silicone Hose is reinforced with textile layers to be extreme pressure resistant and also to vacuums in your Air Charge System. These Hoses are suitable for your Intercooler system, Intake system, Water lines or similar. They can withstand up to 5 Bar and temperatures up to 220°, C. They are not to be used as Fuel or Oil line!

Size Chart / 180°, Elbow Hose
ID (mm)	Wall (mm)	Leg (mm)	Center Distance (mm)	Min Burst (Bar)	Max Working (Bar)	Textile Layer
8	4	100	16	32.90	10.97	3
10	4	100	20	32.90	10.97	3
13	4	100	26	29.30	9.77	3
16	4	100	32	25.90	8.63	3
19	4	100	38	22.40	7.47	3
22	4	100	44	22.40	7.47	3
25	4	100	50	20.60	6.87	3
28	4	100	56	20.60	6.87	3
30	4	100	60	19.00	6.33	3
32	4	100	64	19.00	6.33	3
35	4	100	70	19.00	6.33	3
38	4	100	76	17.20	5.73	3
41	5	100	82	17.20	5.73	4
45	5	100	90	15.50	5.17	4
48	5	100	96	13.80	4.60	4
51	5	100	102	13.80	4.60	4
54	5	120	108	12.10	4.03	4
57	5	120	114	12.10	4.03	4
60	5	120	120	12.10	4.03	4
63	5	120	126	10.30	3.43	4
65	5	120	130	10.30	3.43	4
70	5	120	140	8.60	2.87	4
76	5	120	152	6.00	2.00	4
80	5	120	160	5.20	1.73	4
83	5	120	166	5.20	1.73	4
85	5	120	170	5.20	1.73	4
89	5	120	178	5.20	1.73	4
102	5	120	204	3.40	1.13	4

What you should consider with Silicone

- The diameter refers to the Inner diameter- When choosing the clamp take the Wall Thickness x2 for the right Size- Silicone Hoses are 1-3mm elastic- If you can't find the right size, choose the smaller one which is available

Inner Diameter: 8mm
Curve: 180-degrees
Arm Length: 100mm
Wall Thickness: 4.3mm
Textile Layers: 3
Temperature Range: -40-degreesC to 220-degreesC
Pressure resistant until: minimum 5bar
Color: black (completely)

Premium Silicone Connections

Boost Products Silicone Hose Couplers, Elbows, and Reducers are reinforced with textile layers for exceptional resistance to high pressure and vacuum conditions in your air charge system. These connectors are ideal for use in intercooler systems, intake systems, water lines, and similar applications. They are designed to withstand pressures up to 5 bar and temperatures as high as 220°C (428°F). Please note, that they are not suitable for use as fuel or oil lines.

Part TypeTubing Coupler

Product LineBoost Products Silicone Hose Couplers, Elbows, and Reducers

BrandBOOST PRODUCTS

Package Height1.0

Package Width1.0

Package Length1.0

Weight1.0 PG

Part CategoryPerformance Parts

Part FitmentUniversal

Vendor Part Number3256000080

Package Qty1

Package TypeEA
