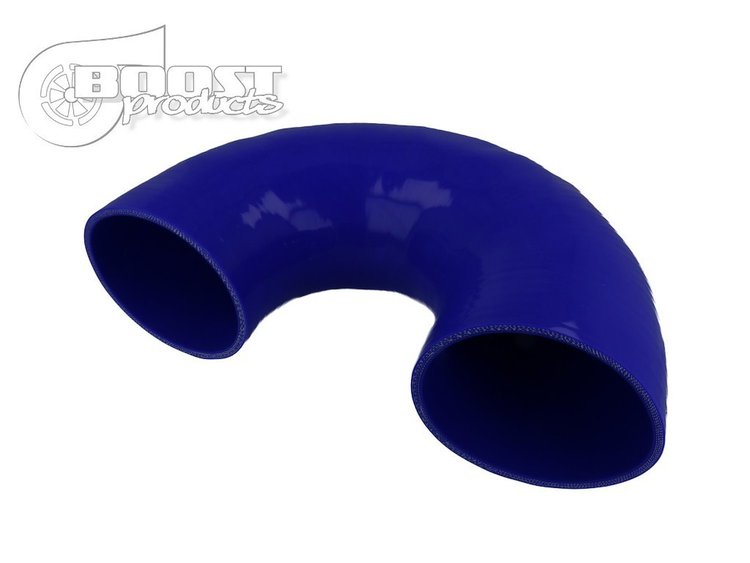

3276000550 Silicone Elbow, 180-Degrees, 54 mm (2-1/8 in.) I.D. [Blue]

Name: 3276000550 Silicone Elbow, 180-Degrees, 54 mm (2-1/8 in.) I.D. [Blue]
Brand: BOOST PRODUCTS
SKU: 353-3276000550
Price: 34.03 USD
Availability: OutOfStock

^$34⁰³$37.82You Save$3.79

Lowest Price Guarantee

Elbows
180-Degrees

Silicone Elbow

180-Degrees

54 mm (2-1/8 in.) I.D.

Blue

Boost Products 3276000550 Features:

This BOOST Products Silicone Hose is reinforced with textile layers to be extreme pressure resistant and also to vacuum in your Air Charge System. These Hoses are suitable for your Intercooler system, Intake system, Water lines or similar. They can withstand up to 5 Bar and temperatures up to 220°, C. They are not to be used as Fuel or Oil line!After many tests we deliver best quality at the best price! The BOOST Products silicone hoses have achieved and many times even exceeded the quality of silicone hoses compared to ones made by well known manufacturers in quality tests. This silicone is durable and flexible, stable and color-proof after many years. Lots of well known company's in the tuning and motorsport areas rely on silicone hoses made by BOOST Products.The hoses have until 38mm 3 layers of fabric and 4.3mm wall thickness. From 41mm there are 4 layers and 5.3mm wall thickness. They come with a small subtle BOOST Products logo which proofs the silicone hoses' quality.

Size Chart / 180°, Elbow Hose
ID (mm)	Wall (mm)	Leg (mm)	Center Distance (mm)	Min Burst (Bar)	Max Working (Bar)	Textile Layer
8	4	100	16	32.90	10.97	3
10	4	100	20	32.90	10.97	3
13	4	100	26	29.30	9.77	3
16	4	100	32	25.90	8.63	3
19	4	100	38	22.40	7.47	3
22	4	100	44	22.40	7.47	3
25	4	100	50	20.60	6.87	3
28	4	100	56	20.60	6.87	3
30	4	100	60	19.00	6.33	3
32	4	100	64	19.00	6.33	3
35	4	100	70	19.00	6.33	3
38	4	100	76	17.20	5.73	3
41	5	100	82	17.20	5.73	4
45	5	100	90	15.50	5.17	4
48	5	100	96	13.80	4.60	4
51	5	100	102	13.80	4.60	4
54	5	120	108	12.10	4.03	4
57	5	120	114	12.10	4.03	4
60	5	120	120	12.10	4.03	4
63	5	120	126	10.30	3.43	4
65	5	120	130	10.30	3.43	4
70	5	120	140	8.60	2.87	4
76	5	120	152	6.00	2.00	4
80	5	120	160	5.20	1.73	4
83	5	120	166	5.20	1.73	4
85	5	120	170	5.20	1.73	4
89	5	120	178	5.20	1.73	4
102	5	120	204	3.40	1.13	4

What you should consider with Silicone

- The diameter refers to the Inner diameter- When choosing the clamp take the Wall Thickness x2 for the right Size- Silicone Hoses are 1-3mm elastic- If you can't find the right size, choose the smaller one which is available
