Dimensions

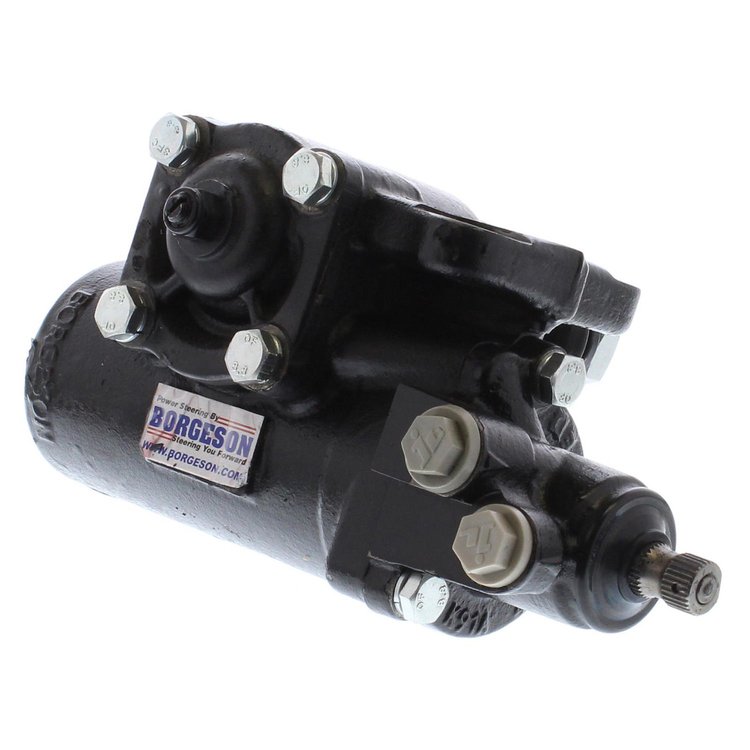

Borgeson 800132 Street & Performance Series Quick Ratio Power Steering Gear Box Features:

• Pressure Port: M18 x 1.5 O-Ring or 11/16 in.-18 Flare, with included adapter
• Return Port: M16 X 1.5 O-Ring or 5/8 in.-18 Flare, with included adapter
• 1,450 PSI Maximum Operating Pressure, 1,100-1,250 Optimal Operating Range
• 2.5-3.0 GPM Flow Rate Recommended

Borgeson 800132 Street & Performance Series Quick Ratio Power Steering Gear Box Notes:

• Trucks converting from manual steering will require a power steering pitman arm.
• All pre-1977 trucks will require a new rag joint connector 153-990012.
