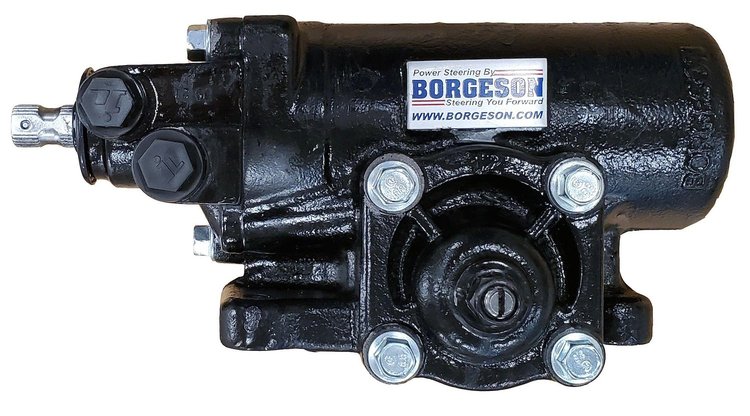

Street and Performance-Series Steering Box 1968-1986 Chevy, GMC K-Series, 1987-1991 Chevy, GMC V-Series [Quick Ratio: 12.7:1]
InfoVehicle Info Needed
BORGESONPART NUMBER: 153-800133

Street and Performance-Series Steering Box 1968-1986 Chevy, GMC K-Series, 1987-1991 Chevy, GMC V-Series [Quick Ratio: 12.7:1]

$53200
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Factory Replacement Rubber Disc Fits: 1973-91 Chevy/GMC Full-Size Truck

BORGESON

Factory Replacement Rubber Disc Fits: 1973-91 Chevy/GMC Full-Size Truck

Part Number : 153-000941
$1833
Replacement Steering Coupler [3/4 in. 30-Spline to 1 in. DD]

JEGS

Replacement Steering Coupler [3/4 in. 30-Spline to 1 in. DD]

Part Number : 555-607050
$4969$53.99
You Save$4.30
Rubber Coupling/Rag Joint 3/4"-30 Spline

BORGESON

Rubber Coupling/Rag Joint 3/4"-30 Spline

Part Number : 153-990012
$7683
Self-Contained Power Steering Pump Bracket Small Block Chevy with Long Water Pump

BORGESON

Self-Contained Power Steering Pump Bracket Small Block Chevy with Long Water Pump

Part Number : 153-802402
$7238

Street and Performance Series
Street and Performance-Series Steering Box
  • 1968-1986 Chevy, GMC K-Series Pickup Truck/SUV
  • 1987-1991 Chevy, GMC V-Series Pickup Truck/SUV
  • Quick Ratio: 12.7:1
  • Input Shaft: 3/4 in.-30 Spline
  • Pitman Shaft: 1 1/4 in. w/ 9-Splines and Notch

    Dimensions for Borgeson 800133

    Features:

    • Includes (2) adapters for use with either O-ring or flare-style hose connections
    • Delivers a firm, modern steering feel
    • Bolts directly into the stock location and fits original power steering pitman arms
    • Pressure port: 18 mm x 1.500 in. O-ring or 11/16 in.-18 flare (used with the included flare insert)
    • Return port: 16 mm x 1.500 in. O-ring or 5/8 in.-18 flare (used with the included flare insert)
    • Maximum pressure: 1,450 psi maximum operating pressure, 1,100-1,250 optimal operating range
    • Recommended flow rate: 2.5-3.0 GPM

    Notes:

    • Applications switching from manual steering will require a power steering pitman arm - NOT included
    • Pre-1977 GM pickup truck applications will require a new rag joint connector, use 153-990012

      • A Modern Steering System for Late Model Vehicles

      Borgeson GM Power Steering Boxes are designed as high-quality direct replacements to GM OE-style steering boxes, delivering a firm, modern steering feel. They will mount directly in the stock location and fit the original steering pitman arms for unmatched performance. Each offers a quick-ratio turn, making these power steering boxes a must for any early to late-model muscle car.

    Part TypeSteering Box
    Product LineBorgeson GM Power Steering Boxes
    BrandBORGESON
    Package Height6.0
    Package Width12.0
    Package Length14.0
    Weight32.6 PG
    Part CategoryReplacement Parts
    Steering Ratio12.7:1
    Mounting Bracket IncludedNo
    Steering Box MaterialCast iron
    Steering Box FinishPainted black
    Fittings IncludedYes
    QuantitySold individually
    Pitman Arm IncludedNo
    Part FitmentSemi Universal
    Steering Box StyleFront steer
    Steering Box TypePower assist
    Hoses IncludedNo
    Package Qty1
    Package TypeEA
