This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

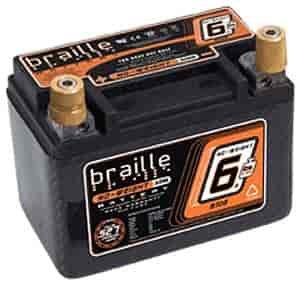

- Carbon Fiber Racing Battery
- 6.9 lbs
- 5.8" L x 3.4" W x 4.2" H
- Cold Cranking Amps: 210
- Pulse Cranking Amps: 527
- Left Side Positive
Worlds Lightest Racing Battery!!! Under 7 pounds, the Carbon Fiber Braille 147-B106C has over 500 pulse cranking amps! If you are building the ultimate race vehicle, this should be the one must have item on your list!
Braille Carbon Fiber Batteries are intended to improve the appearance and performance of your vehicle. By enhancing the quality of the materials of this sealed battery, Braille is able to increase the electrical performance of a battery. The genuine carbon fiber casing is an external representation of this special line of batteries suited to match the level of quality of the type of vehicle you own and love. Don't settle for anything less for your vehicle.
The 147-B106C features an industry leading energy to weight ratio. Enhanced Mat Technology (more surface area on the lead plates) combined with calcium full frame power path grids (increase cranking power), yields over 520 Pulse Cranking Amps. With a weight of under 7 pounds/3.1kg (without terminals) the Braille 147-B106C shatters conceptions about battery size and performance.Durability was also designed into the 147-B106C battery. Using high density oxide, braille was able to offer a battery with true deep-cycling ability over the life of the battery. Heavy duty vibration resistant power posts resist cracking and deterioration common to many lightweight batteries used in harsh automotive environments. The 147-B106C is a sealed unit that can be mounted in any position safely using its adjustable automotive terminal posts & is approved for racing by all major sanctioning bodies.PERFORMANCE
Voltage: 12 volts
Short Circuit Current: 760
Cranking Amps @ 32F: 283
Cold Cranking Amps @ 0F: 210
Reserve Capacity: 20 minutes
Capacity (C/20 rate): 11 amp hr
Internal Resistance (ohms): 15.8 milliohms (.0158ohms)PHYSICAL SPECS
Carbon Fiber Heat-Resistant Casing, Horizontal and Vertical Mounting
BCI Group: Usable for all Group Sizes
Length: 5.8"
Width: 3.4"
Height: 4.1"
Minimum Weight (lbs): 6 lbs
Post Type: SAE Automotive Vertical or Horizontal + Bolt through style accepted.
Stainless Stud: Both Automotive SAE Posts and Race Style Bolts are Stainless with a 6 x 1.0mm bolt pitchRecommended Uses:
Extreme Lightweight Vehicles - Full Race Cars
Extreme Audio Builds with Very Small Space -please use multiple batteries -
Custom Cars / Choppers- No Acid to Spill - protect and enhance your vehicle!Not Recommended For:
Cold ClimatesLong Term StorageLarge Displacement Motors with High CompressionPLEASE NOTE: Customers looking to start large motors machine - check out the 147-B2015C or 147-B3121C Carbon Batteries.
