Product Discontinued

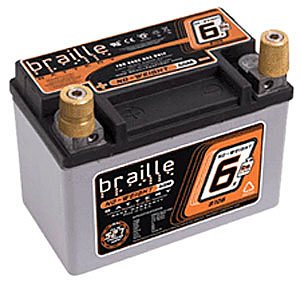

*USED - Advanced AGM Lightweight Racing Battery 6.9 lbs

Name: *USED - Advanced AGM Lightweight Racing Battery 6.9 lbs
Brand: BRAILLE BATTERY
SKU: 147-B106U
Price: 169.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Advanced AGM Lightweight Racing Battery

6.9 lbs
5.8'' L x 3.4'' W x 4.2'' H
Cold Cranking Amps: 210
Cranking Amps: 283
527 (PCA) Pulse Cranking Amps
Left Side Positive

Worlds Lightest Racing Battery!!! Under 7 pounds, the Advanced AGM Lightweight Braille 147-B106 has over 500 pulse cranking amps! If you are building the ultimate race vehicle, this should be the one must have item on your list!
Braille Advanced AGM Lightweight Batteries are intended to improve the appearance and performance of your vehicle. By enhancing the quality of the materials of this sealed battery, Braille is able to increase the electrical performance of a battery. Don't settle for anything less for your vehicle.

The 147-B106 features an industry leading energy to weight ratio. Enhanced Mat Technology (more surface area on the lead plates) combined with calcium full frame power path grids (increase cranking power), yields over 520 Pulse Cranking Amps. With a weight of under 7 pounds/3.1kg (without terminals) the Braille 147-B106 shatters conceptions about battery size and performance.Durability was also designed into the 147-B106 battery. Using high density oxide, braille was able to offer a battery with true deep-cycling ability over the life of the battery. Heavy duty vibration resistant power posts resist cracking and deterioration common to many lightweight batteries used in harsh automotive environments. The 147-B106 is a sealed unit that can be mounted in any position safely using its adjustable automotive terminal posts & is approved for racing by all major sanctioning bodies.
Braille B106 PERFORMANCE
Voltage: 12 volts
Short Circuit Current: 760
Cranking Amps @ 32F: 283
Cold Cranking Amps @ 0F: 210
Reserve Capacity: 20 minutes
Capacity (C/20 rate): 10 amp hr
Internal Resistance (ohms): 15.8 milliohms (.0158ohms)
B106 PHYSICAL SPECS
Durable Virgin Poly Casing, Horizontal and Vertical Mounting
BCI Group: Usable for all Group Sizes
Length: 5.8"
Width: 3.4"
Height: 4.2"
Minimum Weight (lbs): 6.9 lbs
Post Type: SAE Automotive Vertical or Horizontal + Bolt through style accepted.
Stainless Stud: Both Automotive SAE Posts and Race Style Bolts are Stainless with a 6 x 1.0mm bolt pitch
Recommended Uses:
Extreme Lightweight Vehicles - Full Race Cars
Extreme Audio Builds with Very Small Space -please use multiple batteries -
Custom Cars / Choppers- No Acid to Spill - protect and enhance your vehicle!
B106 Not Recommended For:
Cold ClimatesLong Term StorageLarge Displacement Motors with High Compression
PLEASE NOTE: Customers looking to start large motors machine - check out the 147-B2015 or 147-B3121 Batteries.
