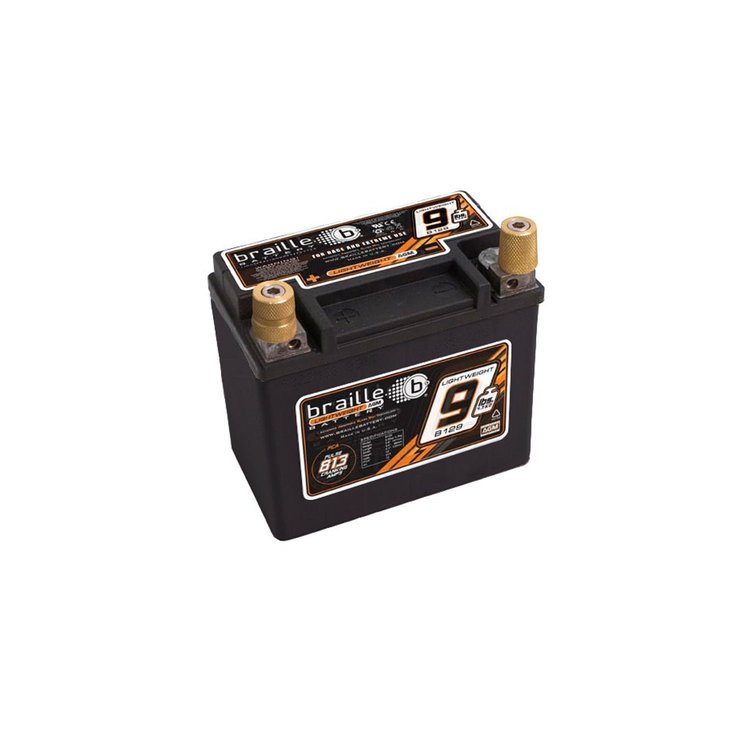

Advanced AGM Lightweight Racing Battery 9.5 lbs
InfoVehicle Info Needed
BRAILLE BATTERYPART NUMBER: 147-B129

Advanced AGM Lightweight Racing Battery 9.5 lbs

$18999
1 left in stock
ShippingShips on Nov 09, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Universal Battery Hold Down HDPP (High Density Polypropylene)

JEGS

Universal Battery Hold Down HDPP (High Density Polypropylene)

Part Number : 555-10264
$1683$19.99
You Save$3.16
Battery Terminal Cover Set For use on All Top-Post Batteries

JEGS

Battery Terminal Cover Set For use on All Top-Post Batteries

Part Number : 555-10304
$833$8.99
You Save$0.66
Battery Terminal Disconnect Side Mount

JEGS

Battery Terminal Disconnect Side Mount

Part Number : 555-10318
$1999$22.99
You Save$3.00
Side Post Adapter [Connects Top Mount Disconnect to Side Mount Post Battery]

JEGS

Side Post Adapter [Connects Top Mount Disconnect to Side Mount Post Battery]

Part Number : 555-10322
$599$6.99
You Save$1.00

Advanced AGM Lightweight Racing Battery
    Advanced AGM Lightweight Racing Battery
  • 9.5 lbs
  • 5.8'' L x 3.4'' W x 5.1'' H
  • Cold Cranking Amps: 323
  • Cranking Amps: 526
  • 813 (PCA) Pulse Cranking Amps
  • Left Side Positive

    Model Information
    Model Number: Braille SKU #B129
    Model Name: 9.5lb Race Battery

    Physical Specifications
    BCI Group: Usable for all Group Sizes
    Length: 5.8"
    Width: 3.4"
    Height (without posts): 5.1"
    Minimum Weight:9.5 lbs

    Performance
    Voltage: 12 volts
    Full Charge Voltage: 13.8 volts
    Short Circuit Current (Max cranking Amps): 760
    Pulse Cranking Amps (PCA) 5 sec @ 80F: 813
    Pulse Cranking Amps (PCA) 10 sec @ 80F: 711
    Pulse Cranking Amps 20 sec @ 80F: 627
    Cranking Amps 30 sec @ 80F: 526
    Cranking Amps 30 sec @ 32F: 436
    Cold Cranking Amps 30 sec @ 0F: 323
    Reserve Capacity: Less than 20 minutes
    Capacity (C/20 rate): 12 amp hr
    Internal Resistance: 4.5 miliohms (.0045 ohms)
    Life Cycle @ 100% DOD: 1800-2000 cycles est

    Small Batteries, Big Power

    Barely tipping the scales, Braille Advanced AGM Lightweight Racing Batteries trim nearly 25 pounds of weight or more off of most vehicles. These environmentally safe batteries feature a patented "sealed valve regulated" design that completely eliminates acid spills and corrosion. Dual removable terminals allow for mounting in a variety of vertical or horizontal positions. Every Braille battery is performance certified and fully charged before shipping.

Part TypeBattery
Product LineBraille Advanced AGM Lightweight Racing Batteries
BrandBRAILLE BATTERY
Package Height5.1 in (129.54 mm)
Package Width3.4 in (86.36 mm)
Package Length7.9
Weight10.2 PG
Weight9.5 lb (4.308 kg)
Part CategoryPerformance Parts
Cranking Amps At 32 Degrees F436 amps
Reserve Capacity24 minutes
QuantitySold individually
Overall Length5.8 in (147.3 mm)
Battery TypeAGM
Cranking Amps At 0 Degrees F323 amps
Battery UsageStarting
Battery TerminalsTop and side
Part FitmentSemi Universal
Volts12 volts
Vendor Part NumberB129
Package Qty1
Package TypeEA
