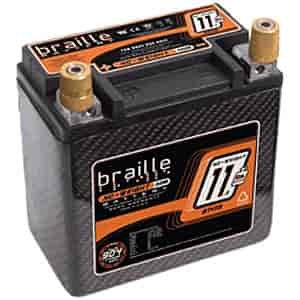

Carbon Fiber Racing Battery 11.5 lbs

Name: Carbon Fiber Racing Battery 11.5 lbs
Brand: BRAILLE BATTERY
SKU: 147-B14115C
Price: 302.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Carbon Fiber Racing Batteries

11.5 lbs
5.8" L x 3.4" W x 5.8" H
Cold Cranking Amps: 360
Pulse Cranking Amps: 904
Left Side Positive

147-B14115C Cranking Amp Tests:
PCA 5 seconds - 904 Amps
PCA 10 seconds - 791 Amps
PCA 20 seconds - 698 Amps
HCA 585 Amps
CA 486 Amps
CCA 360 Amps

The Spec B14115C battery by Braille Auto is used by racers all over the world in the FIA WRC, FIA Formula Racing, Speed World Challenge Series, SCCA ProRally Series, SCCA Regional and National Racing, NASA Touring Cars, NIRA, NOPI and Battle of the Imports Drag Racing Series. The Spec B14115C is also perfect for daily street use. Braille developed the B14115C to excel at racing and to easily power street vehicles equipped with A/C, stereos and power accessories.

The B14115C features an industry leading energy to weight ratio. Enhanced Mat Technology (more surface area on the lead plates) combined with calcium full frame power path grids (increase cranking power), yields over 360 Cold Cranking Amps and 900 Pulse Cranking Amps. With a weight of only 11.5 pounds/5.2kg, the B14115C is 10-30 pounds lighter than a standard battery of equal power.

Durability was also designed into the battery. Using high density oxide, braille was able to offer a battery with true deep-cycling ability over the life of the battery. Heavy duty vibration resistant power posts resist cracking and deterioration common to many lightweight batteries used in harsh automotive environments. The B14115C is a sealed unit that can be mounted in any position safely using its adjustable automotive terminal posts.
PERFORMANCE
Voltage: 12 volts
Short Circuit Current: 2200
Cranking Amps @ 32F: 486
Cold Cranking Amps @ 0F: 360
Reserve Capacity: 25 minutes
Capacity (C/20 rate): 15 amp hr
Internal Resistance (ohms): 5.5 milliohms (.0055ohms)
PHYSICAL SPECS
Carbon Fiber Heat-Resistant Casing, Horizontal and Vertical Mounting
BCI Group: Usable for all Group Sizes
Length: 5.8"
Width: 3.4"
Height: 5.8"
Minimum Weight (lbs): 11.5 lbs
Post Type: SAE Automotive Vertical or Horizontal + Bolt through style accepted.
Stainless Stud: Both Automotive SAE Posts and Race Style Bolts are Stainless with a 6 x 1.0mm bolt pitch
Recommended Uses:
Daily or Race Use in Small to Medium Displacement Motors.
Weekend Track Warriors
Show Vehicles
Custom Cars and Vintage Vehicles - No Acid to Spill protect and enhance your vehicle!

Customers looking for the ultimate in starting power while still saving weight on a large displacement purpose built machines - check out the 147-B2015C or 147-B3121C Carbon Batteries.
