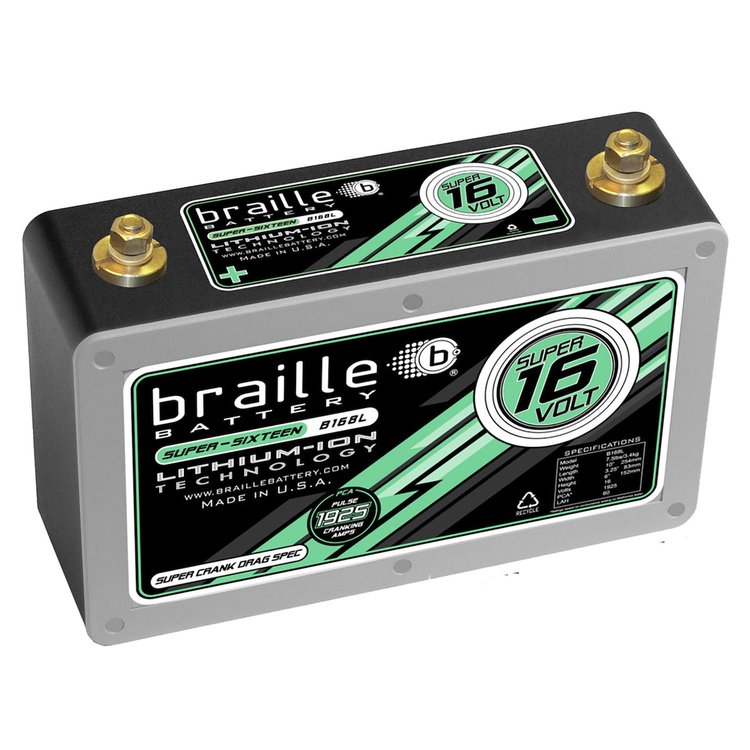

Super 16 Volt Lithium Drag Race Battery 16 Volt
- Super 16 Volt Lithium Drag Race Battery
- 16 Volt
- 7.5 lbs
PERFORMANCE
Voltage: 16 Volts
Minimum Voltage Cutoff: 14 Volts for 30 sec
Full Charge Voltage: 18 - 18.2 volts
Max Operating Temp Enclosed: 140 degrees
Max Operating Temp Ambient: 165 degrees
Short Circuit Current: 3000
Pulse Wattage: 3000
Pulse Cranking Amps: 1260
Reserve Capacity: 39 minutes
Amp Hour Capacity: 20 (AH)
Lithium Amp Hour: 60 (LAH)
Life Cycle @ 10% DOD: 5000 cyclesPHYSICAL SPECS
Unique Features: Horizontal and Vertical Mounting, Low Voltage Cut Off, Braille Power Button
BCI Group: 1/2 Group 34
Length: 10"
Width: 3.25"
Height: 6"
Weight (lbs): 7.5 lbs/ 4 kg
Post Type: SAE Automotive Posts included 3/8" Bolt Internal Thread.
Polarity: Left Side Positive
Recommended Mounting: Secure Mounting with vibration padding on all contact surfaces, mountable in any position.CHARGING SYSTEM
Required charger information: Braille Electronic 16 Volt Lithium Charger
Alternator: 18-18.5 Volt only
Rapid Recharge: 25 amp/hr electronically controlled
A Lighter, Stronger, and Faster Battery
The Braille Super 16 Volt Lithium Drag Race Battery & Charger has been designed specifically for the 16-volt drag racing application where weight savings is a priority...in this form of racing who doesn't want to save weight? This battery is just 7.5 pounds but will fire up the 800+ cubic inch, Nitrous, Pro-Mod drag cars with perfect reliability. This battery also has the capacity of a 60 amp-hour lead-acid battery, this equates to no loss of performance or voltage sag since it will maintain a 17-volt output all the way to 90% discharge! The lithium technology will also last five years or more longer and will not self-discharge (no voltage loss) for up to a full year while in storage! This all adds up to cost savings over the life of your race car and adding this battery is like switching your electrical system from pump gas to race fuel!
