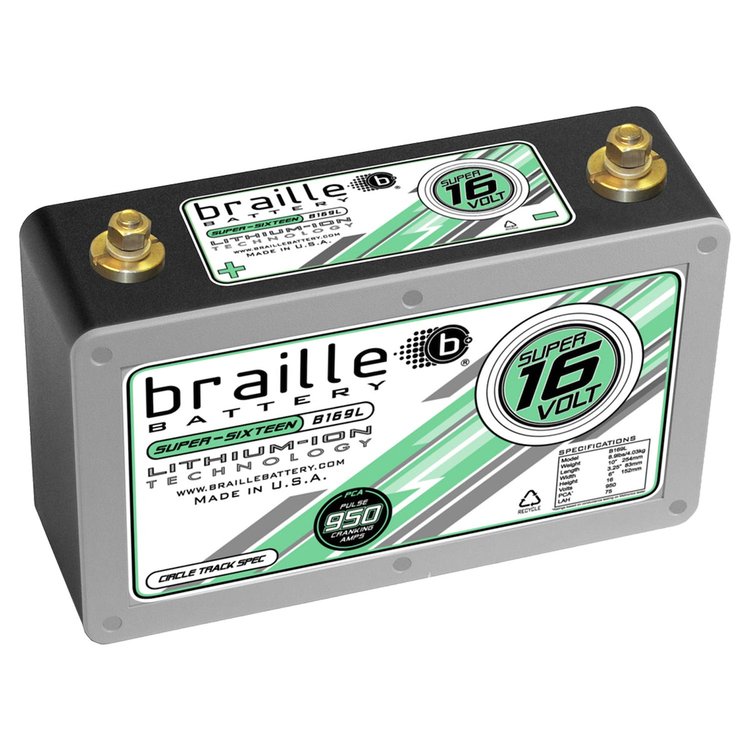

Lithium 16V Circle Track Battery
- Lithium 16V Circle Track Battery
PERFORMANCE
Voltage: 16 Volts
Full Charge Range: 17.4 - 17.6 Volts
Pulse Crank Amps @ 80F: 950
Nominal Capacity (C/5 rate): 25 AH
Lead-Acid Equivalent Capacity: 75 Lithium AH (LAH)
Life Cycle @ 80% DOD: Up to 1000 cycles
Life Cycle @ 10% DOD: Up to 5000 cycles
PHYSICAL SPECS
Unique Features: Horizontal and Vertical Mounting, Low Voltage Cut Off, Braille Power Button
BCI Group: Same Length as Group 34 and Group 24
Length: 11.5"
Width: 3.25"
Height: 6"
Minimum Weight (lbs): Under 8 lbs/ 3.6kg
Post Type: Brass Reinforced 3/8" Studs with Nuts.
Recommended Mounting: Secure Mounting with vibration padding on all contact surfaces.
Required charger information:
Standard Charging - Braille 2 amp Lithium Charger #1632L
Rapid Charging - Braille 10 amp Lithium Charger #16310L
Alternator: Automotive, Marine and Cycle Compatible
Maximum Charge Voltage @ 70F: Up to 20.5 Volts
Full Charge Voltage: 18.25 Volts
Lighter. Stronger. Faster.
The Braille Super 16 Volt Lithium Circle Track Battery & Charger has been designed specifically for dirt late model, circle track racers who want a light 16v battery with more run time than a 30+ pound lead battery...in this form of racing who doesn't want to save weight? This battery is just 9.5 pounds but has the capacity of a 75 amp hour lead acid battery, this equates to no loss of performance or voltage sag since it will maintain a 17 volt output all the way to 90% discharge! The lithium technology will also last five years or more longer and will not self-discharge (no voltage loss) for up to a full year while in storage! This all adds up to cost savings over the life of your race car and adding this battery is like switching your electrical system from pump gas to race fuel!
Show More
Features:
- Easy Install: Direct Group 34 Drop In Replacement
- Lighter: 40 Pounds Lighter than Equal Capacity
- Safer: Sealed Safe Design
- Efficient: Stable Voltage Output
- Greener: Modular Design For Service or Repair
- Reliable: Longer Cycle Life, Better shelf Life
