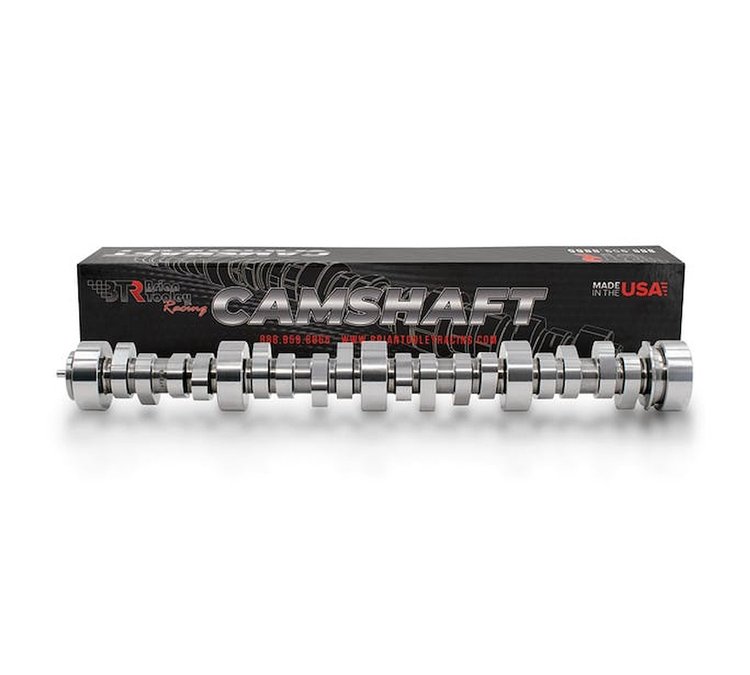

BTR-31824100 Hydraulic Roller Stage 3 Camshaft for GM Gen III/IV LS Truck Engines

Name: BTR-31824100 Hydraulic Roller Stage 3 Camshaft for GM Gen III/IV LS Truck Engines
Brand: BRIAN TOOLEY RACING BTR
SKU: 559-BTR-31824100
Price: 389.99 USD
Availability: InStock

^$389⁹⁹

Ships on 09/15/2026

Lowest Price Guarantee

Gen III/IV LS Truck Hydraulic Roller Stage 3 Camshaft

4.8 L–6.2 L Applications

Duration @ .050: ~218 Int./~224 Ex.

Lift ~.553 in./~.553 in.

LSA ~110 deg

V2 Truck Grind

Stage 3 V2 truck cam aimed at aggressive street and street/strip builds with supporting mods, offering stronger mid and top-end power.

Brian Tooley Racing BTR-31824100 Features:

Approx. Duration @ .050: ~218 Int. / ~224 Ex.
Approx. Valve Lift: ~.553 in. Int. / ~.553 in. Ex.
Approx. LSA: ~110 deg
Designed for Gen III/IV LS truck platforms
Benefits from higher-stall converter and airflow mods

Brian Tooley Racing BTR-31824100 Notes:

Dual springs and upgraded pushrods recommended
Custom ECU calibration required

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Unlock Maximum LS Power with BTR Camshafts for GM Gen III/IV LS Engines

Brian Tooley Racing (BTR) offers high-performance camshaft solutions tailored for Gen III/IV GM LS platforms, perfect for Silverado/Sierra trucks and LS‑swapped muscle cars. With aggressive grind profiles, durable design, and dyno-proven power gains, these camshafts deliver torque and horsepower increases across the RPM range.BTR's Gen III/IV cam lineup includes the signature Truck Norris, Stage 1, Stage 2, Stage 3, LS1/LS2 Stage 3, LS3 Stage 4, and turbo‑optimized variants like Stage 1 Turbo and Twin Turbo V2. Each cam is CNC-ground from proprietary cores, heat-treated for lasting reliability, and spin- and dyno-tested for peak performance and stability.

Part TypeCamshaft

Product LineBrian Tooley Racing BTR Camshafts for GM Gen III/IV LS Engines

BrandBRIAN TOOLEY RACING BTR

Package Height3.0

Package Width3.0

Package Length25.0

Weight15.0 PG

Part CategoryPerformance Parts

Intake Valve Lift.553

Part FitmentSemi Universal

Engine Make/SizeGM Gen III/IV LS

Exhaust Valve Lift.553
