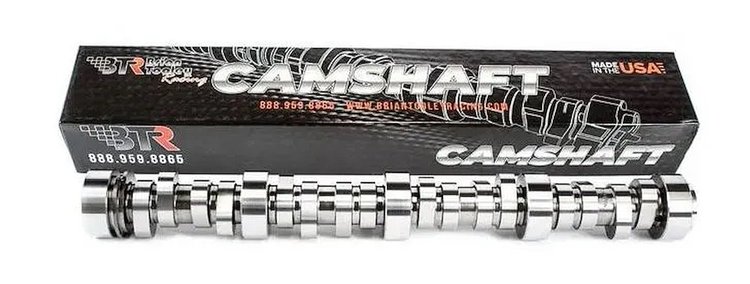

BTR-345230 Hydraulic Roller 230 Camshaft for GM LS Engines w/ LT-Style Heads

Name: BTR-345230 Hydraulic Roller 230 Camshaft for GM LS Engines w/ LT-Style Heads
Brand: BRIAN TOOLEY RACING BTR
SKU: 559-BTR-345230
Price: 399.99 USD
Availability: InStock

^$399⁹⁹

Ships on 09/15/2026

Lowest Price Guarantee

LS Engines Hydraulic Roller 230 Camshaft

LT-Style Head Swap Applications

Duration @ .050: 230 Int./24X Ex.

Lift .644 in./.644 in.

LSA 113 deg

Aggressive Street/Strip

230-degree LT head swap cam for LS blocks fitted with LT-style cylinder heads, delivering aggressive idle and strong mid to top-end output.

Brian Tooley Racing BTR-345230 Features:

Duration @ .050: 230 Int. / 24X Ex.
Valve Lift: .644 in. Int. / .644 in. Ex.
LSA: 113 deg
Engineered for LT head swap on LS platforms
Excels with ported heads and free-flowing intake/exhaust

Brian Tooley Racing BTR-345230 Notes:

Requires comprehensive supporting mods and custom tuning
Not intended for mild bolt-on builds

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Unlock Maximum LS Power with BTR Camshafts for GM Gen III/IV LS Engines

Brian Tooley Racing (BTR) offers high-performance camshaft solutions tailored for Gen III/IV GM LS platforms, perfect for Silverado/Sierra trucks and LS‑swapped muscle cars. With aggressive grind profiles, durable design, and dyno-proven power gains, these camshafts deliver torque and horsepower increases across the RPM range.BTR's Gen III/IV cam lineup includes the signature Truck Norris, Stage 1, Stage 2, Stage 3, LS1/LS2 Stage 3, LS3 Stage 4, and turbo‑optimized variants like Stage 1 Turbo and Twin Turbo V2. Each cam is CNC-ground from proprietary cores, heat-treated for lasting reliability, and spin- and dyno-tested for peak performance and stability.

Part TypeCamshaft

Product LineBrian Tooley Racing BTR Camshafts for GM Gen III/IV LS Engines

BrandBRIAN TOOLEY RACING BTR

Package Height3.0

Package Width3.0

Package Length24.0

Weight15.0 PG

Part CategoryPerformance Parts

Intake Valve Lift.644

Lobe Separation Deg113

Part FitmentSemi Universal

Engine Make/SizeGM Gen III/IV LS
