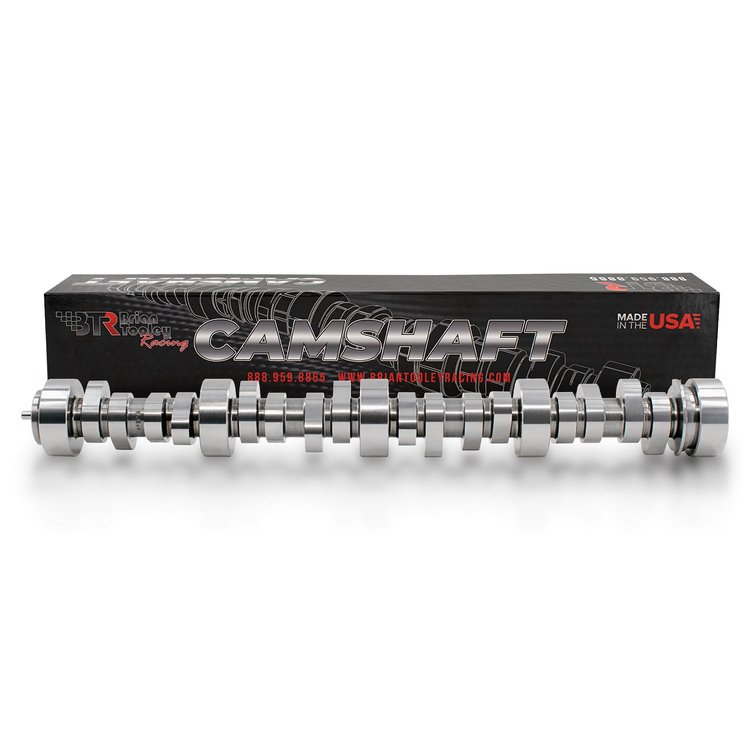

BTR-400+NA Hydraulic Roller Camshaft for GM Gen III/IV LS 402–427 ci Engines

Name: BTR-400+NA Hydraulic Roller Camshaft for GM Gen III/IV LS 402–427 ci Engines
Brand: BRIAN TOOLEY RACING BTR
SKU: 559-BTR-400+NA
Price: 409.99 USD
Availability: InStock

^$409⁹⁹

Ships on 09/15/2026

Lowest Price Guarantee

Gen III/IV LS 402–427 ci Hydraulic Roller Camshaft

Duration @ .050: 236 Int./25X Ex.

Lift .636 in./.636 in.

LSA 114 deg

Operating Range: 3500–7000 RPM

Naturally Aspirated Applications

Designed for large displacement 402–427 ci LS engines, the BTR-400+NA camshaft provides strong mid-range torque and excellent top-end power while maintaining street-friendly manners.

Brian Tooley Racing BTR-400+NA Features:

Duration @ .050: 236 Int. / 25X Ex.
Valve Lift: .636 in. Int. / .636 in. Ex.
LSA: 114 deg
Operating Range: 3500–7000 RPM
Optimized for 402–427 ci naturally aspirated LS engines

Brian Tooley Racing BTR-400+NA Notes:

Requires .660 in. dual valve springs and hardened pushrods
1.7 rocker ratio recommended

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft

BrandBRIAN TOOLEY RACING BTR

Package Height3.0

Package Width3.0

Package Length25.0

Weight15.0 PG

Part CategoryPerformance Parts

Intake Valve Lift.636

Lobe Separation Deg114

Part FitmentSemi Universal

Engine Make/SizeGM Gen III/IV LS
