BRIAN TOOLEY RACING BTRPART NUMBER: 559-J000018

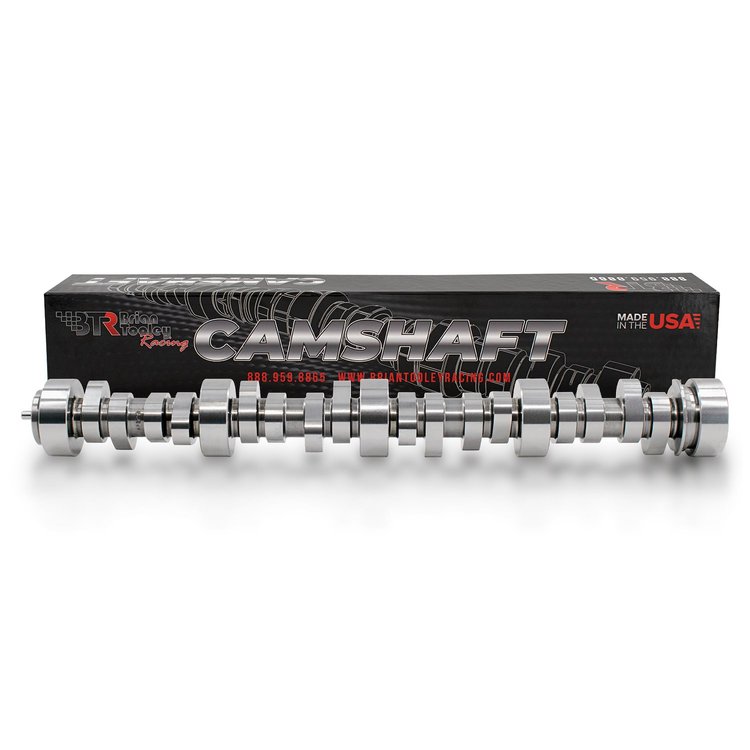

BTR-30202111R1 Hydraulic Roller Camshaft for GM Gen III/IV LS Truck Engines
$38999
Gen III/IV LS Truck Hydraulic Roller Camshaft4.8 L–6.0 L Applications Duration @ .050: 202 Int./202 Ex. Lift .511 in./.511 in. LSA 111 deg plus 1 Tow and Torque Focus
Torque-biased truck grind for Gen III/IV LS engines that improves low and mid-range performance with OE-like drivability.
Brian Tooley Racing BTR-30202111R1 Features:
- Duration @ .050: 202 Int. / 202 Ex.
- Valve Lift: .511 in. Int. / .511 in. Ex.
- LSA: 111 deg plus 1
- Optimized for everyday truck use and towing
- Supports stock converter in most setups
Brian Tooley Racing BTR-30202111R1 Notes:
- AFM/DOD delete or tuning required on equipped engines
- Valve spring upgrade recommended for durability
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandBRIAN TOOLEY RACING BTR
Package Height3.0
Package Width3.0
Package Length25.0
Weight15.0 PG
Part CategoryPerformance Parts
Intake Valve Lift.511
Lobe Separation Deg111
Part FitmentSemi Universal
Engine Make/SizeGM Gen III/IV LS
Exhaust Valve Lift.511
Camshaft TypeHydraulic Roller
Vendor Part NumberBTR-30202111R1
Package Qty1
Package TypeEA
