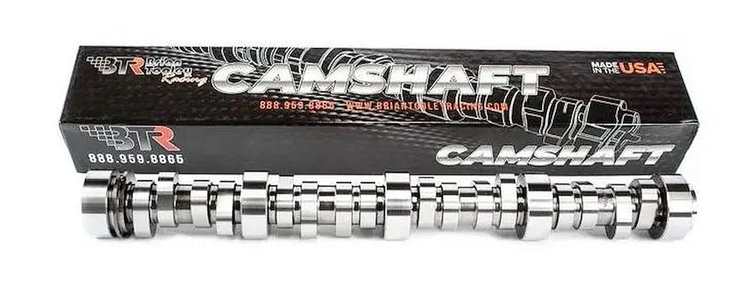

BTR-PDSSTAGE4 Hydraulic Roller Stage 4 Camshaft for GM Gen III/IV LS Engines w/ PD Supercharger

Name: BTR-PDSSTAGE4 Hydraulic Roller Stage 4 Camshaft for GM Gen III/IV LS Engines w/ PD Supercharger
Brand: BRIAN TOOLEY RACING BTR
SKU: 559-J000028
Price: 409.99 USD
Availability: InStock

^$409⁹⁹

Ships on 09/15/2026

Lowest Price Guarantee

PD Supercharged Hydraulic Roller Camshaft

Stage 4 High Output Grind

Duration @ .050: 232 Int./244 Ex.

Lift .620 in./.620 in.

LSA 115 deg

Maximum Effort Boost Profile

The BTR-PDSSTAGE4 camshaft is built for maximum power in PD supercharged LS engines, producing exceptional airflow and top-end performance with a race-style idle.

Brian Tooley Racing BTR-PDSSTAGE4 Features:

Duration @ .050: 232 Int. / 244 Ex.
Valve Lift: .620 in. Int. / .620 in. Ex.
LSA: 115 deg
Optimized for high-boost supercharged combinations
Designed for maximum RPM and airflow

Brian Tooley Racing BTR-PDSSTAGE4 Notes:

Dual springs, titanium retainers, and tuning required
Not recommended for stock converter or daily driving

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Unlock Maximum LS Power with BTR Camshafts for GM Gen III/IV LS Engines

Brian Tooley Racing (BTR) offers high-performance camshaft solutions tailored for Gen III/IV GM LS platforms, perfect for Silverado/Sierra trucks and LS‑swapped muscle cars. With aggressive grind profiles, durable design, and dyno-proven power gains, these camshafts deliver torque and horsepower increases across the RPM range.BTR's Gen III/IV cam lineup includes the signature Truck Norris, Stage 1, Stage 2, Stage 3, LS1/LS2 Stage 3, LS3 Stage 4, and turbo‑optimized variants like Stage 1 Turbo and Twin Turbo V2. Each cam is CNC-ground from proprietary cores, heat-treated for lasting reliability, and spin- and dyno-tested for peak performance and stability.

Part TypeCamshaft

Product LineBrian Tooley Racing BTR Camshafts for GM Gen III/IV LS Engines

BrandBRIAN TOOLEY RACING BTR

Package Height3.0

Package Width3.0

Package Length24.0

Weight11.0 PG

Intake Valve Lift.620

Lobe Separation Deg115

Part FitmentSemi Universal

Engine Make/SizeGM Gen III/IV LS

Exhaust Valve Lift.620
