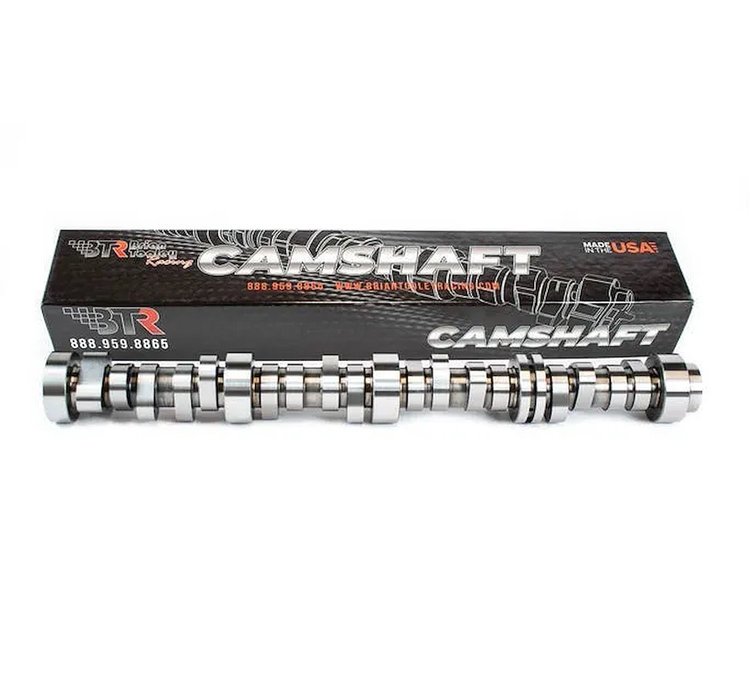

BTR Gen V 230 Camshaft for GM Gen V LT Engines w/ VVT

Name: BTR Gen V 230 Camshaft for GM Gen V LT Engines w/ VVT
Brand: BRIAN TOOLEY RACING BTR
SKU: 559-J000042
Price: 409.99 USD
Availability: InStock

^$409⁹⁹

Ships on 09/14/2026

Lowest Price Guarantee

BTR Gen V 230 Camshaft

2014+ GM 6.2 L LT1/L86 Gen V w/ VVT

Duration @ .050: 230 Int./24X Ex.

Lift .644 Int./.644 Ex.

LSA 112°

+32% Fuel Lobe for Max-Effort Builds

The BTR 230 camshaft is built for serious Gen V LT applications where supporting mods allow maximum power and rpm potential.

BTR 230 Features:

230/24X Duration @ .050 in.
.644 in. Lift Intake and Exhaust
112° LSA for aggressive power curve
+32% Fuel Lobe for high-demand setups
Ideal for ported heads and aftermarket intake systems

BTR 230 Notes:

Requires VVT limiter, dual springs, and custom tuning
Piston fly-cutting recommended on stock pistons

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Unleash Gen V LT Power: BTR Camshafts Tailored for GM LT Engines

Experience dramatic gains in torque, horsepower, and drivability with Brian Tooley Racing’s Gen V LT camshaft lineup—perfect for LT1, L83/L84, L86, LT4, and LT V6 platforms. These precision CNC-ground grinds are Spintron- and dyno-tested to deliver optimized valve events and stable valvetrain performance for naturally aspirated and forced induction LT builds.BTR’s Gen V offerings include diesel-crushing torque cams like the L8T Torque, performance packages such as the Gen V 220/225/230 grinds, and boost-ready options including V6 Turbo, Stage 3 Turbo, and more. Each grind is engineered specifically for the LT platform to unlock mid-range torque, top-end power, and aggressive idle character without sacrificing daily drivability.

Part TypeCamshaft

Product LineBrian Tooley Racing BTR Camshafts for GM Gen V LT

BrandBRIAN TOOLEY RACING BTR

Package Height3.0

Package Width3.0

Package Length24.0

Weight15.0 PG

Part CategoryPerformance Parts

Intake Valve Lift.644

Lobe Separation Deg112

Part FitmentSemi Universal

Engine Make/SizeGM Gen V LT
