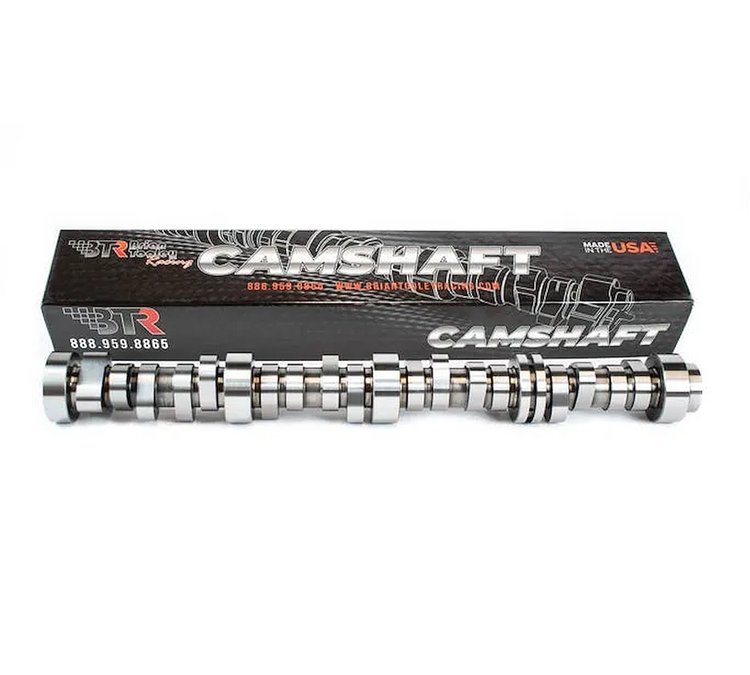

BTR-GENVSTG3SCPDS Hydraulic Roller Stage 3 Camshaft for GM Gen V LT Engines w/ PD Supercharger

Name: BTR-GENVSTG3SCPDS Hydraulic Roller Stage 3 Camshaft for GM Gen V LT Engines w/ PD Supercharger
Brand: BRIAN TOOLEY RACING BTR
SKU: 559-J000079
Price: 459.99 USD
Availability: InStock

^$459⁹⁹

Ships on 09/15/2026

Lowest Price Guarantee

Gen V LT Hydraulic Roller Stage 3 Camshaft

PD Supercharged Applications

Duration @ .050: 232 Int./242 Ex.

Lift .615 in./.615 in.

LSA 115 deg

High Output Boost Grind

The BTR-GENVSTG3SCPDS camshaft is designed for Gen V LT engines using positive displacement superchargers, offering maximum top-end power and aggressive sound.

Brian Tooley Racing BTR-GENVSTG3SCPDS Features:

Duration @ .050: 232 Int. / 242 Ex.
Valve Lift: .615 in. Int. / .615 in. Ex.
LSA: 115 deg
Engineered for Whipple, Magnuson, or Eaton TVS systems
Strong mid and high-RPM performance with lopey idle

Brian Tooley Racing BTR-GENVSTG3SCPDS Notes:

Dual springs and hardened pushrods required
Custom ECU tuning required to support airflow changes

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Unleash Gen V LT Power: BTR Camshafts Tailored for GM LT Engines

Experience dramatic gains in torque, horsepower, and drivability with Brian Tooley Racing’s Gen V LT camshaft lineup—perfect for LT1, L83/L84, L86, LT4, and LT V6 platforms. These precision CNC-ground grinds are Spintron- and dyno-tested to deliver optimized valve events and stable valvetrain performance for naturally aspirated and forced induction LT builds.BTR’s Gen V offerings include diesel-crushing torque cams like the L8T Torque, performance packages such as the Gen V 220/225/230 grinds, and boost-ready options including V6 Turbo, Stage 3 Turbo, and more. Each grind is engineered specifically for the LT platform to unlock mid-range torque, top-end power, and aggressive idle character without sacrificing daily drivability.

Part TypeCamshaft

Product LineBrian Tooley Racing BTR Camshafts for GM Gen V LT

BrandBRIAN TOOLEY RACING BTR

Package Height3.0

Package Width3.0

Package Length24.0

Weight11.0 PG

Intake Valve Lift.615

Lobe Separation Deg115

Part FitmentSemi Universal

Engine Make/SizeGM Gen V LT

Exhaust Valve Lift.615
