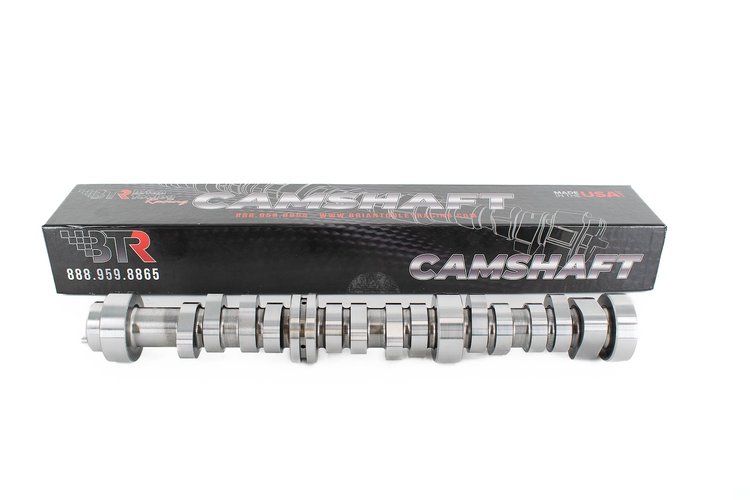

BTR-LVXSTAGE2 Hydraulic Roller Stage 2 Camshaft for GM LV3 4.3 L Engines

Name: BTR-LVXSTAGE2 Hydraulic Roller Stage 2 Camshaft for GM LV3 4.3 L Engines
Brand: BRIAN TOOLEY RACING BTR
SKU: 559-J000098
Price: 349.99 USD
Availability: InStock

^$349⁹⁹

Ships on 09/14/2026

Lowest Price Guarantee

LV3 Stage 2 Hydraulic Roller Camshaft

Gen V LV3 4.3 L Engines

Duration @ .050: 212 Int./220 Ex.

Lift .540 in./.540 in.

LSA 112 deg

Street/Strip Grind

The BTR-LVXSTAGE2 camshaft enhances the performance of Gen V LV3 4.3 L engines, increasing midrange torque and top-end power for street and towing use.

Brian Tooley Racing BTR-LVXSTAGE2 Features:

Duration @ .050: 212 Int. / 220 Ex.
Valve Lift: .540 in. Int. / .540 in. Ex.
LSA: 112 deg
Improved torque and horsepower across the range
Works with stock converter and drivability retained

Brian Tooley Racing BTR-LVXSTAGE2 Notes:

Valve spring upgrade and ECU tuning required
Compatible with daily-driven or towing setups

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Unleash Gen V LT Power: BTR Camshafts Tailored for GM LT Engines

Experience dramatic gains in torque, horsepower, and drivability with Brian Tooley Racing’s Gen V LT camshaft lineup—perfect for LT1, L83/L84, L86, LT4, and LT V6 platforms. These precision CNC-ground grinds are Spintron- and dyno-tested to deliver optimized valve events and stable valvetrain performance for naturally aspirated and forced induction LT builds.BTR’s Gen V offerings include diesel-crushing torque cams like the L8T Torque, performance packages such as the Gen V 220/225/230 grinds, and boost-ready options including V6 Turbo, Stage 3 Turbo, and more. Each grind is engineered specifically for the LT platform to unlock mid-range torque, top-end power, and aggressive idle character without sacrificing daily drivability.

Part TypeCamshaft

Product LineBrian Tooley Racing BTR Camshafts for GM Gen V LT

BrandBRIAN TOOLEY RACING BTR

Package Height3.0

Package Width3.0

Package Length24.0

Weight15.0 PG

Intake Valve Lift.540

Lobe Separation Deg112

Part FitmentSemi Universal

Exhaust Valve Lift.540

Camshaft TypeHydraulic Roller
