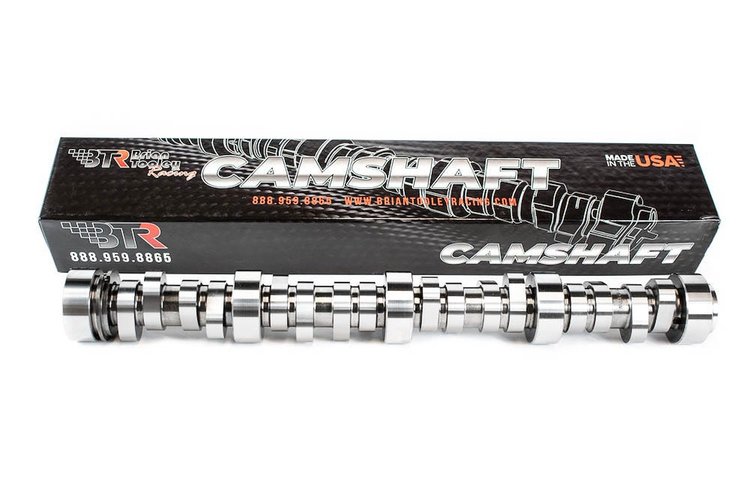

BTR-TURBOSTG1 Hydraulic Roller Stage 1 Turbo Camshaft for GM Gen III/IV LS Engines
InfoVehicle Info Needed
BRIAN TOOLEY RACING BTRPART NUMBER: 559-J000115

BTR-TURBOSTG1 Hydraulic Roller Stage 1 Turbo Camshaft for GM Gen III/IV LS Engines

$40999
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

LS Turbo Hydraulic Roller Stage 1 Camshaft
  • Gen III/IV LS Engines
  • Duration @ .050: 218 Int./226 Ex.
  • Lift .610 in./.610 in.
  • LSA 115 deg
  • Street Boost Profile

    The BTR-TURBOSTG1 camshaft enhances boost efficiency and drivability in turbocharged LS builds, offering great low-end response and a smooth idle.

    Brian Tooley Racing BTR-TURBOSTG1 Features:

    • Duration @ .050: 218 Int. / 226 Ex.
    • Valve Lift: .610 in. Int. / .610 in. Ex.
    • LSA: 115 deg
    • Optimized for street turbo applications
    • Fast spool and efficient powerband

    Brian Tooley Racing BTR-TURBOSTG1 Notes:

    • Upgraded valve springs required
    • Custom tuning for boost control recommended

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCamshaft
    BrandBRIAN TOOLEY RACING BTR
    Package Height3.0
    Package Width3.0
    Package Length25.0
    Weight15.0 PG
    Intake Valve Lift.610
    Lobe Separation Deg115
    Part FitmentSemi Universal
    Engine Make/SizeGM Gen III/IV LS
    Exhaust Valve Lift.610
    Camshaft TypeHydraulic Roller
    Vendor Part NumberBTR-TURBOSTG1
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the graphs PDF File
