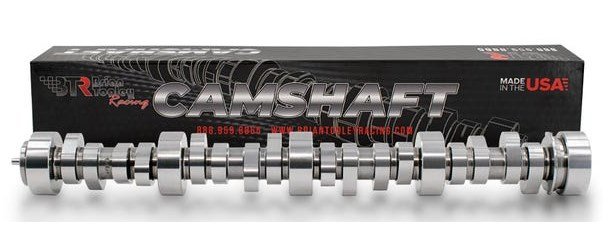

BTR-LSTRUCKSTG3-V3 Hydraulic Roller Stage 3 Truck Camshaft for GM Gen III/IV LS Engines
InfoVehicle Info Needed
BRIAN TOOLEY RACING BTRPART NUMBER: 559-J000198

BTR-LSTRUCKSTG3-V3 Hydraulic Roller Stage 3 Truck Camshaft for GM Gen III/IV LS Engines

$40999
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

LS Truck Stage 3 Hydraulic Roller Camshaft
  • Gen III/IV 4.8 L–6.0 L Engines
  • Duration @ .050: 218 Int./224 Ex.
  • Lift .553 in./.553 in.
  • LSA 111 deg
  • Aggressive Street/Strip Grind

    The BTR-LSTRUCKSTG3-V3 camshaft provides aggressive performance for LS-powered trucks, delivering a lopey idle and strong torque while maintaining street drivability.

    Brian Tooley Racing BTR-LSTRUCKSTG3-V3 Features:

    • Duration @ .050: 218 Int. / 224 Ex.
    • Valve Lift: .553 in. Int. / .553 in. Ex.
    • LSA: 111 deg
    • Excellent torque and midrange power
    • Distinctive idle with responsive acceleration

    Brian Tooley Racing BTR-LSTRUCKSTG3-V3 Notes:

    • Upgraded valve springs required
    • Custom ECU tuning recommended

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCamshaft
    BrandBRIAN TOOLEY RACING BTR
    Package Height2.9
    Package Width4.0
    Package Length23.1
    Weight10.7 PG
    Valve Springs IncludedNo
    Basic Operating Rpm Range1900-6400
    Intake Valve Lift.553
    Lobe Separation Deg111
    Lobe Separation109
    Advertised Exhaust Duration22X
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Engine Make/SizeGM Gen III/IV LS
    Valve Springs RequiredYes
    Exhaust Valve Lift.553
    Camshaft TypeHydraulic Roller
    Advertised Intake Duration213
    Vendor Part NumberBTR-LSTRUCKSTG3-V3
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file

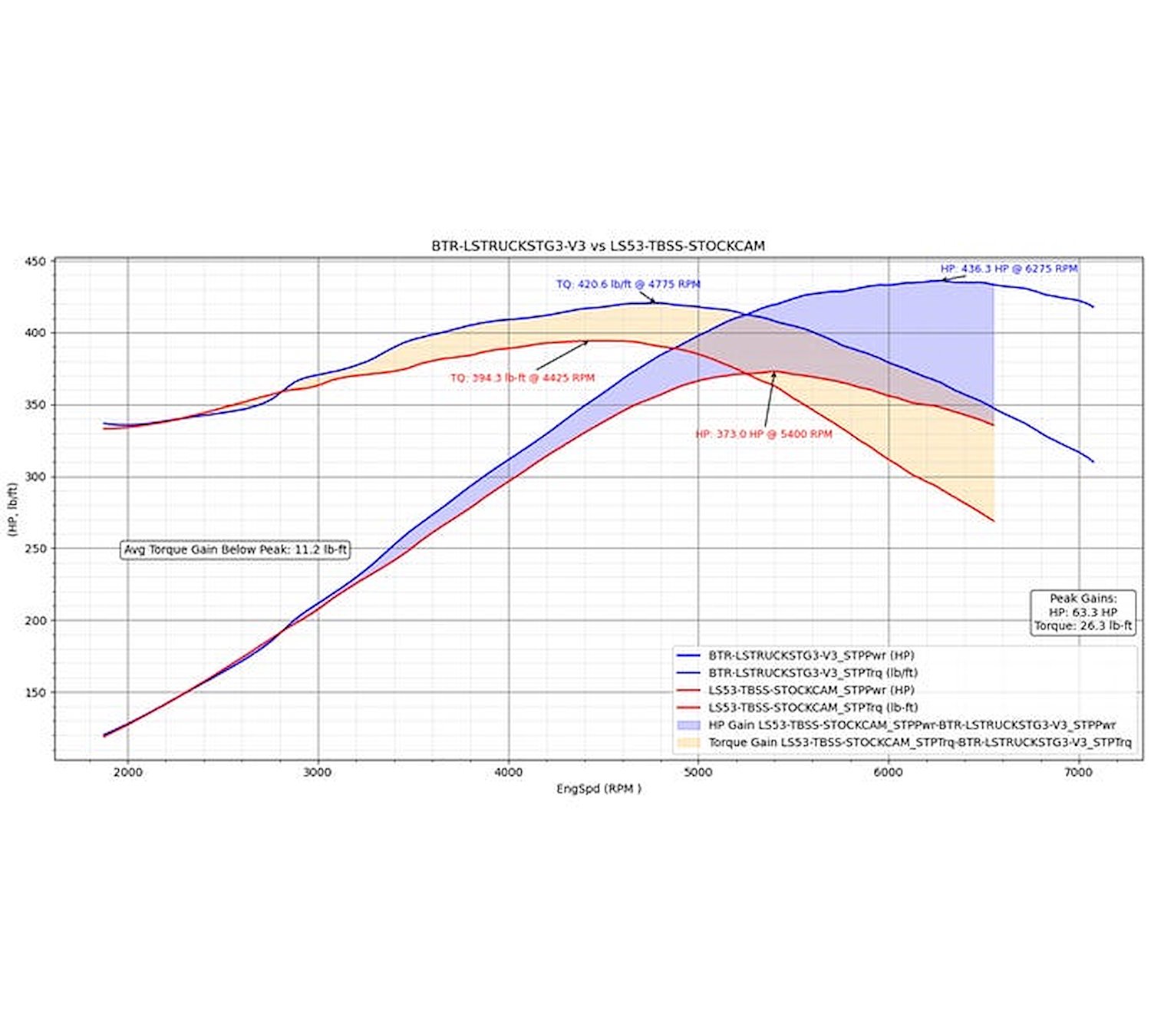

    Please click here to download the graphs PDF File
