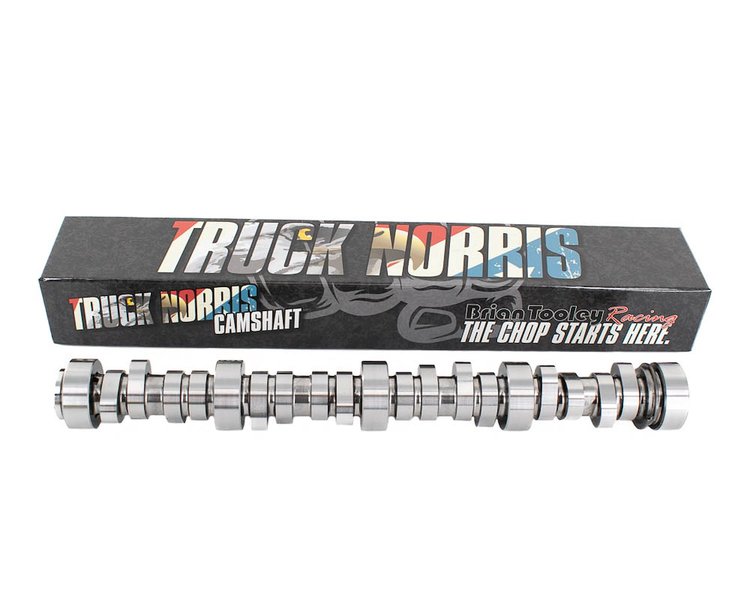

BTR-TRUCKNORRIS Hydraulic Roller Camshaft for GM Gen III/IV LS Truck Engines
InfoVehicle Info Needed
BRIAN TOOLEY RACING BTRPART NUMBER: 559-TRUCKNORRIS

BTR-TRUCKNORRIS Hydraulic Roller Camshaft for GM Gen III/IV LS Truck Engines

$40999
5 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Universal Camshaft Installation/Removal Tool Includes 4 camshaft adapters

JEGS

Universal Camshaft Installation/Removal Tool Includes 4 camshaft adapters

Part Number : 555-80599
$4779$51.99
You Save$4.20
Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Cam Install Kit for Most domestic V6 & V8

PROFORM

Cam Install Kit for Most domestic V6 & V8

Part Number : 778-66787K
$23542
Master Pushrod Length Checker Kit

JEGS

Master Pushrod Length Checker Kit

Part Number : 555-80670
$10399$114.99
You Save$11.00

Truck Norris Hydraulic Roller Camshaft
  • Gen III/IV 4.8 L–6.0 L Engines
  • Duration @ .050: 212 Int./23X Ex.
  • Lift .552 in./.552 in.
  • LSA 109.5 deg
  • Choppy Idle Street Grind

    The BTR-TRUCKNORRIS camshaft is one of the most popular LS truck upgrades, providing a choppy idle, strong torque, and improved throttle response while maintaining drivability.

    Brian Tooley Racing BTR-TRUCKNORRIS Features:

    • Duration @ .050: 212 Int. / 23X Ex.
    • Valve Lift: .552 in. Int. / .552 in. Ex.
    • LSA: 109.5 deg
    • Excellent low and midrange torque for daily use
    • Choppy, aggressive idle sound

    Brian Tooley Racing BTR-TRUCKNORRIS Notes:

    • Upgraded valve springs required
    • Tuning necessary for optimal performance

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Unlock Maximum LS Power with BTR Camshafts for GM Gen III/IV LS Engines

      Brian Tooley Racing (BTR) offers high-performance camshaft solutions tailored for Gen III/IV GM LS platforms, perfect for Silverado/Sierra trucks and LS‑swapped muscle cars. With aggressive grind profiles, durable design, and dyno-proven power gains, these camshafts deliver torque and horsepower increases across the RPM range.BTR's Gen III/IV cam lineup includes the signature Truck Norris, Stage 1, Stage 2, Stage 3, LS1/LS2 Stage 3, LS3 Stage 4, and turbo‑optimized variants like Stage 1 Turbo and Twin Turbo V2. Each cam is CNC-ground from proprietary cores, heat-treated for lasting reliability, and spin- and dyno-tested for peak performance and stability.

    Part TypeCamshaft
    Product LineBrian Tooley Racing BTR Camshafts for GM Gen III/IV LS Engines
    BrandBRIAN TOOLEY RACING BTR
    Package Height2.8
    Package Width5.0
    Package Length22.3
    Weight10.65 PG
    Part CategoryPerformance Parts
    Intake Valve Lift.552
    Lobe Separation Deg109.5
    Part FitmentSemi Universal
    Engine Make/SizeGM Gen III/IV LS
    Exhaust Valve Lift.552
    Camshaft TypeHydraulic Roller
    Vendor Part NumberTRUCKNORRIS
    Package Qty1
    Package TypeEA
