Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Single Plane Design4150-Series Carb Flange

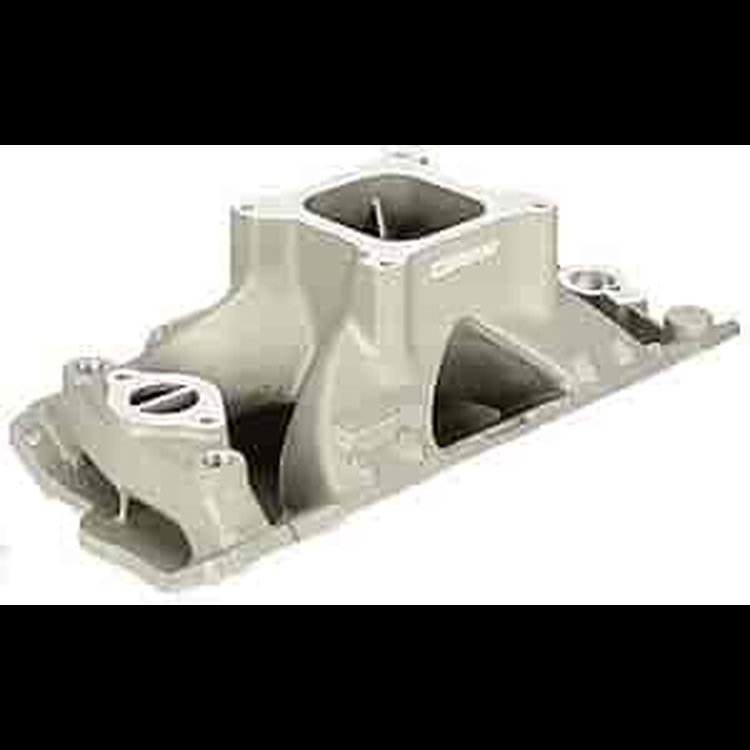

- HV 1001 Series Intake Manifold
- Small Block Chevy
- Single Plane
- 4150-Series Carb Flange
- 6.550'' Height
- Fits Brodix -8RI, -10RI, -11RI Series Heads
- Extended End Rails
- .220'' Lower Dist. Pad
- Use Fel Pro 1206
- 4000-8000 RPM Range
Part TypeIntake Manifold
BrandBRODIX
Package Height9.6
Package Width11.2
Package Length22.1
Weight20.6 PG
Part CategoryPerformance Parts
Intake Section IncludedComplete
Basic Operating Rpm Range4,000-8,000
Engine Block StyleStock/OEM standard Deck
EgrWithout EGR
Intake MaterialAluminum
Intake StyleSingle plane
QuantitySold individually
Intake FinishNatural
Carburetor QuantityOne
Intake Manifold Height6.55 in (166.37 mm)
Vendor Part NumberHV1001
Package Qty1
Package TypeEA
