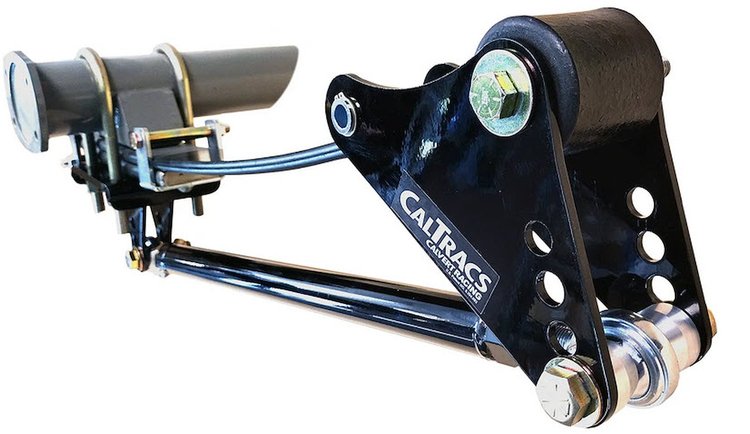

The CalTracs MX 1010-MX Traction Bar Kit is engineered for 1968–1974 AMX Javelins with inboard shocks mounted behind the leaf springs. Designed to keep the CalTracs assembly parallel to the ground under load, the MX system allows for optimal traction tuning in drag applications. With expanded adjustment capability and upgraded materials, this kit delivers serious launch control for serious racers.

CalTracs MX 1010-MX Features:

• MX 3-Hole Adjustable Rear Mounts for fine suspension tuning
• MX 4-Hole Pivot Plates with 12 setting options
• Upgraded 9/16 in. pivot bolt hardware for added strength
• Chromoly Preload Link minimizes flex under load

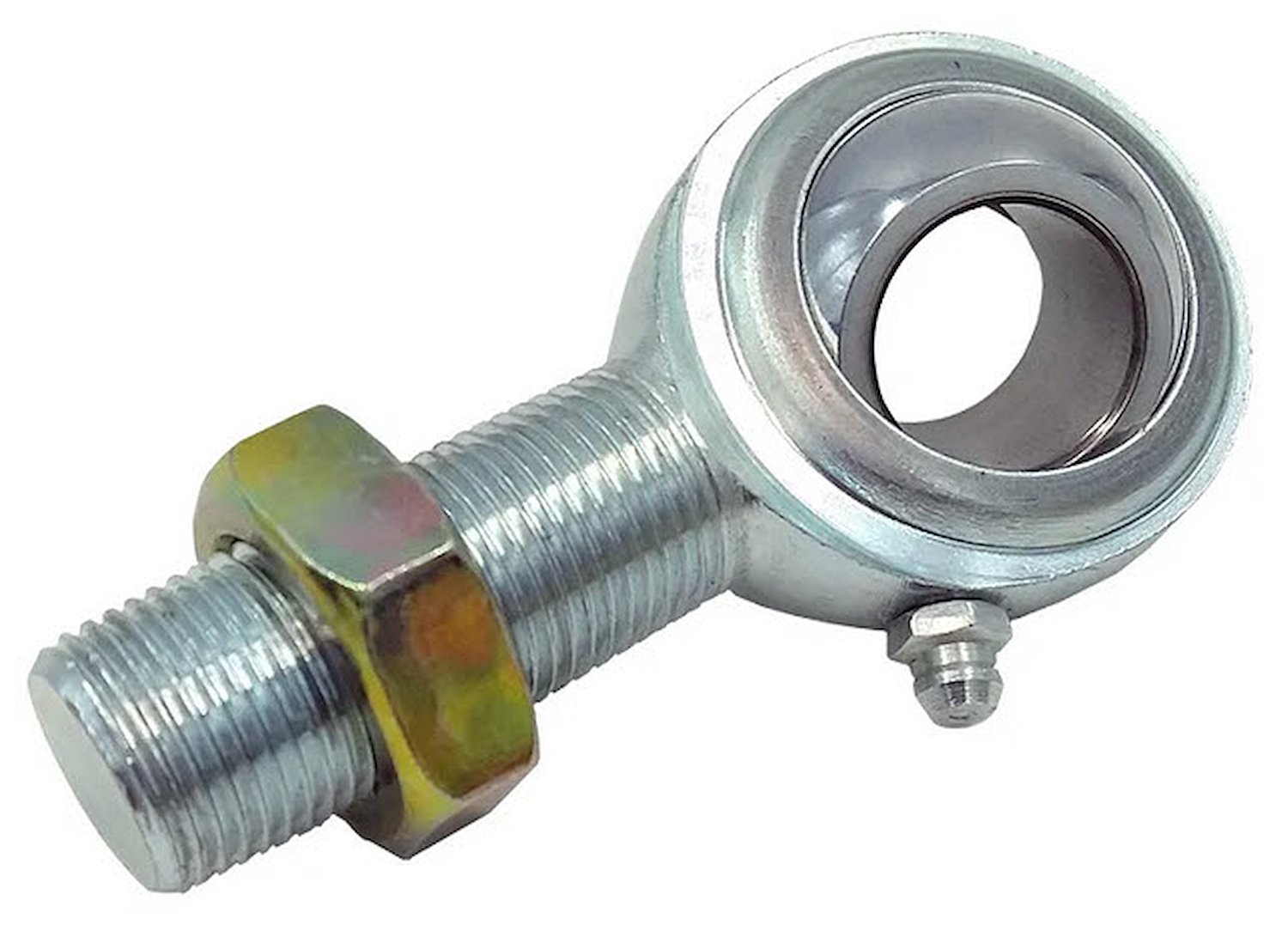

• 3/4 in. Heim Joints rated over 14,000 lbs radial static load
• Two-piece aluminum front spring eye bushing assembly
• Rear mounts constructed from 5/16 in. mild steel
• Black powder coated finish for durability
• Bolt-on installation—no welding required
• Rod Ends come pre-installed with grease zerks

CalTracs MX 1010-MX Includes:

• 2 MX Rear Mounts
• 4 MX Pivot Plates
• 4 Heim Joints/Rod Ends
• 2 Force Transfer Links
• Installation Hardware
• Full-color Installation Guide

CalTracs MX 1010-MX Notes:

• Designed for use with leaf springs and U-bolts
• U-bolts not included
• Not compatible with truck platforms
